Product description:

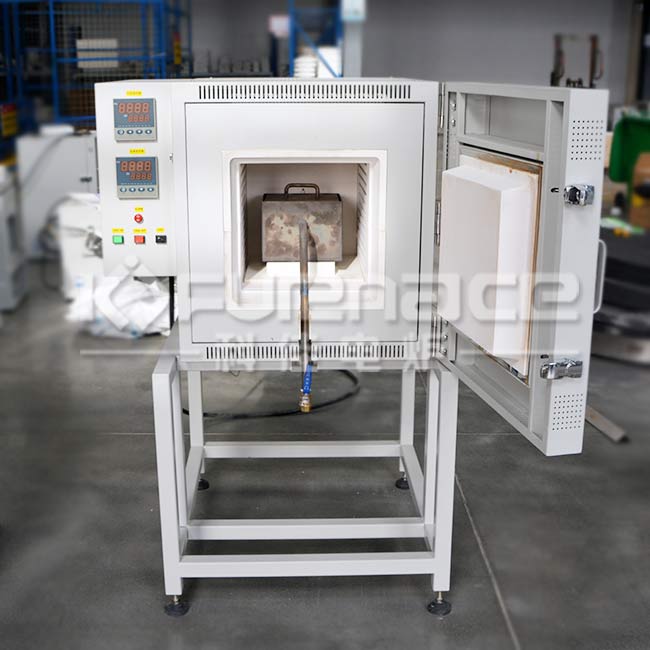

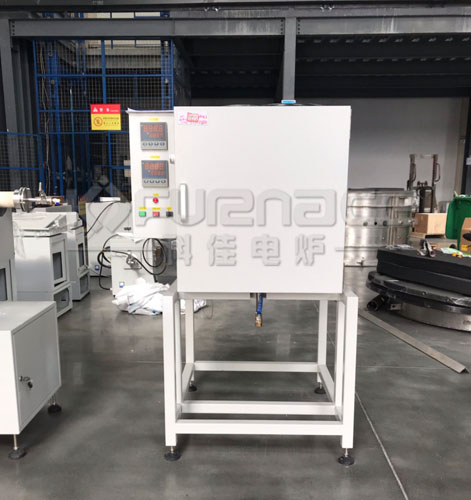

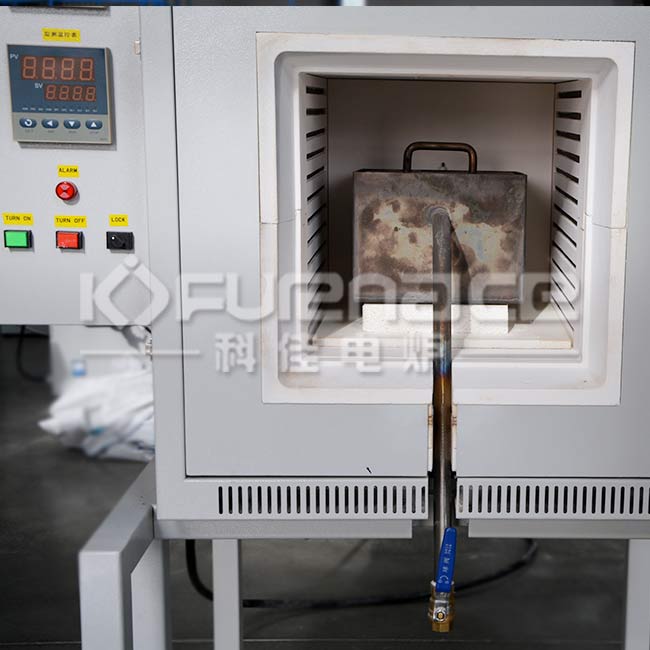

Box type pyrolysis carbonization furnace is a Muffle Furnace composed of a heating system, a control system, and an air-inlet and air-out reactor with a horizontal side-opening double-layer air-cooled structure.
Product application:
1.Mainly used for carbonization and pyrolysis of various substances.
2.Biomass such as rice husk, straw, sawdust, coconut shell, hemp stalk, branch, bark, peanut shell, palm shell, etc.
3.Non-biological substances such as sludge, oil sludge, lignite, cloth strips, domestic waste, medical waste, etc.
Product features:
simple structure, advanced technology, reliable process, easy and safe operation, low operation and maintenance costs, long service life, etc.
Box type pyrolysis carbonization furnace is a Muffle Furnace composed of a heating system, a control system, and an air-inlet and air-out reactor with a horizontal side-opening double-layer air-cooled structure.
Product application:
1.Mainly used for carbonization and pyrolysis of various substances.
2.Biomass such as rice husk, straw, sawdust, coconut shell, hemp stalk, branch, bark, peanut shell, palm shell, etc.
3.Non-biological substances such as sludge, oil sludge, lignite, cloth strips, domestic waste, medical waste, etc.
Product features:
simple structure, advanced technology, reliable process, easy and safe operation, low operation and maintenance costs, long service life, etc.
| Product name | Box type pyrolysis carbonization furnace | |||
| Model | KJ-MC1000-27LWQ | |||
| Furnace structure | Double-layer air-cooled structure, electrostatic spray | |||
| Furnace material | High Purity Alumina | |||
| Max.temperature | 1000℃ | |||
| Temperature Control System | Intelligent PID, 30-segment programmable temperature control | |||
| Heating rate | 0~20 ℃/Minute | |||
| Temperature protection | With over-temperature and broken couple alarm function | |||
| Chamber size | 300*300*300mm(Can be customized according to customer needs) | |||
| Heating element | Resistance wire | |||
| Temperature measuring element | N-type thermocouple temperature measurement | |||
| Provide related accessories | Customization includes 1 reaction kettle with inlet and outlet ports, 1 hexagonal wrench for flange, 1 hexagonal wrench for shell, and 1 instruction manual | |||
| Notice | The use of dangerous gases and heating of dangerous materials is prohibited. If the process requires it, please install relevant safety devices by yourself | |||
| Other sizes available | ||||
| Material area size（mm） | Volume (L) | Material area size（mm） | Volume (L) | |
| 200*200*300(Can be customized according to customer needs) | 12(Can be customized according to customer needs) | 400*400*600(Can be customized according to customer needs) | 96(Can be customized according to customer needs) | |
| 200*200*400(Can be customized according to customer needs) | 16(Can be customized according to customer needs) | 500*500*700(Can be customized according to customer needs) | 175(Can be customized according to customer needs) | |
| 350*350*350(Can be customized according to customer needs) | 43(Can be customized according to customer needs) | 600*600*900(Can be customized according to customer needs) | 324(Can be customized according to customer needs) | |
| More sizes can be customized | ||||
