Short-term heating mini furnace_Zhengzhou Kejia Furnace

Product Introduction:

KJ-M600 high temperature muffle furnace uses aludirome as heating element. Max. temperature inside furnace can be reached at 600℃ . The furnace temperature profile can be set up by 30 segments and run automatically by the 518P type advanced temperature controller. The furnace has no door, it is specially designed for small part heat treatment.Click to learn more about Muffle Furnace!

Short-term heating mini furnace

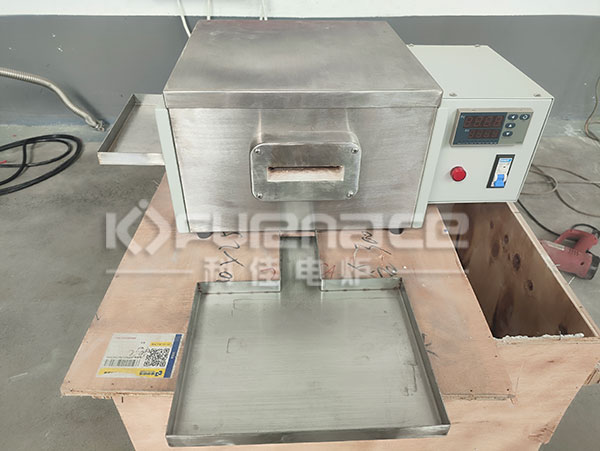

Short term heating mini fuse real-life photos

The main technical parameters:

Model	KJ-M600
Display	LED
Limiting Temperature	600℃
Usable Range	≤550℃
Heating Rate	0~20℃/min(suggest 0~10C/min)
Accuracy	±1℃(high temperature state)
Chamber size	9020180 mm(whd)(Can be customized according to customer needs)
Heating Element	Resistance wire with Mo
Thermocouple	N Type
Temperature Control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Warranty	One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)

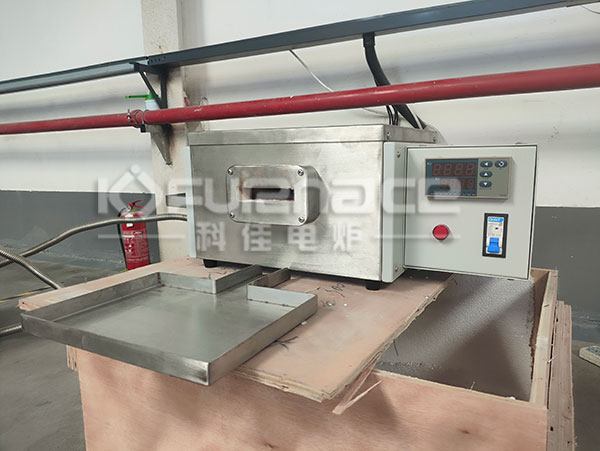

Short term heating mini fuse real-life photos

Product Display

Short-term heating mini furnace
