1700¡æMuffle Furnace
1700¡æ  Drop Down Door muffle furnace

1700¡æ Drop Down Door muffle furnace

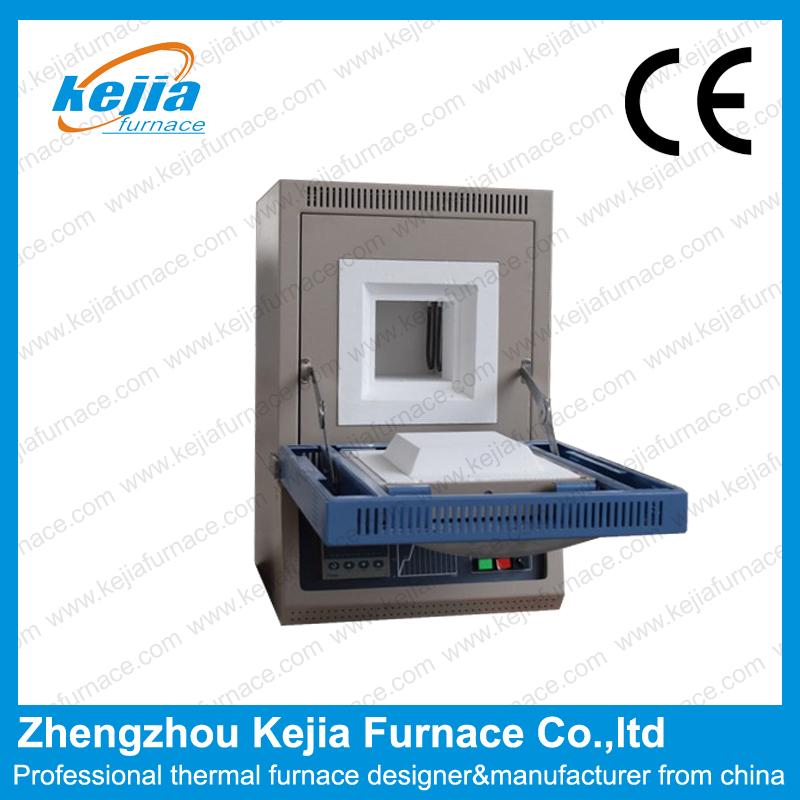

Description:KJ-M1700D drop down door muffle furnace,it's easy to load sample.It consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and can be used up to 1700 C. It is an ideal tool for materials annealing and sintering in your research laboratory.

Features of 1700¡æ Drop Down Door muffle furnace:

1. Operation Temperature: 1600°C (1700¡æ for short time).
2. Drop-down door for easy sample loading.
3. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina
    fiber ceramic insulation.
4. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
5. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
6. Power control with 30 or 50 segments programmable.

Chamber Size 200x200x200mm (8"x8"x8")
Working Temperature 1600¡æ (continuous)
Maximum Temperature 1700¡æ (for short time)
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15¡æ/min (suggestion: ≤10¡æ)
Temperature Accuracy +/-1¡æ
Heating Element MoSi2 heating element
Working Voltage AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power approx 8 KW
Outside Size 580x580x830mm
Net Weight 170Kg

The furnace chamber size can be customized.
