1600 ℃ lifting bell cover furnace

Model：KJ-MZ1600-64LX

Description：

The KJ-MZ1600-64LX lifting bell jar furnace adopts silicon molybdenum rod heating elements, with fast heating speed and good temperature uniformity; Compact furnace chamber with lifting tray, the bottom of the furnace can be raised and lowered. This h

Product Introduction:

KJ-BLM1600-64LZ is a bottom loading muffle furnace with a working temperature of ≤ 1600 ℃. The device has a double-layer steel casing with dual cooling fans, and the furnace shell temperature is kept within a safe range. The furnace lining is composed of two layers of ceramic fiber insulation material, using silicon molybdenum rod heating elements, with fast heating speed and good temperature uniformity; Compact furnace chamber with lifting tray, the bottom of the furnace can be raised and lowered. This high-temperature box type lifting furnace is an ideal equipment for material annealing and sintering in research laboratories. Click to view more muffle furnaces!

1600 ℃ lifting bell jar furnace

The main technical features:

1. Easy to operate: Compact furnace chamber with lifting tray, bottom loading design, convenient loading and unloading.
2. Intelligent temperature control: The temperature control system adopts PID regulation and can set 30 temperature rise and fall programs, with a temperature control accuracy of ± 1 ℃.
3. Safety protection: It has over temperature protection and alarm, allowing operation without human supervision.

The main technical parameters:

Model	KJ-BLM1600-64LZ
Furnace structure	Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
Furnace liner	Two layers of ceramic fiber insulation materials First layer: 1800deg.C ceramic fiber board Second layer: 1600deg.C ceramic fiber board
Sealing	An airtight tank to keep special gas in the furnace With gas inlet port and outlet port.
Chamber dimension	400 X 400 X 400mm (Can be customized according to customer needs)
Working temp.	≤1600℃
Heating rate	0-20℃/min (Suggestion: 0-10℃/min)
Temp. accuracy	±-1℃
Thermocouple	B-type thermocouple
Temp. control	PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant
Heating element	MoSi2 heating rods
Lifting tray	speed of door up/down lift 80-100mm/second extension cable and up/down button handle

1600 ℃ lifting bell cover furnace

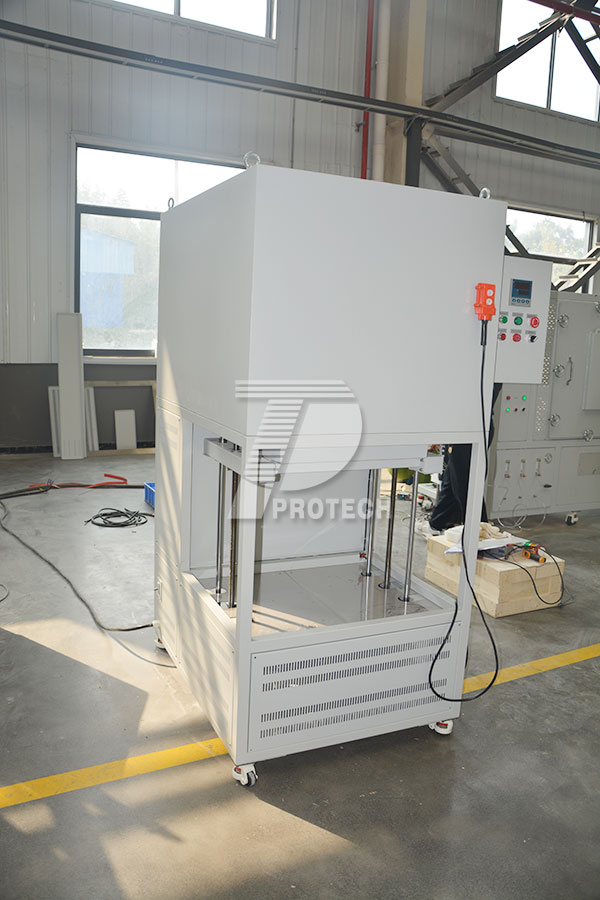

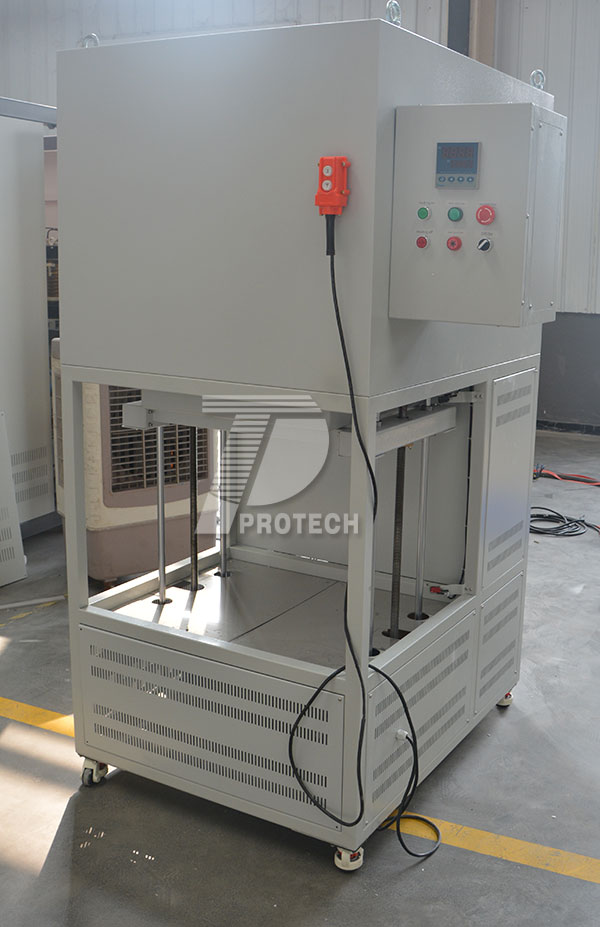

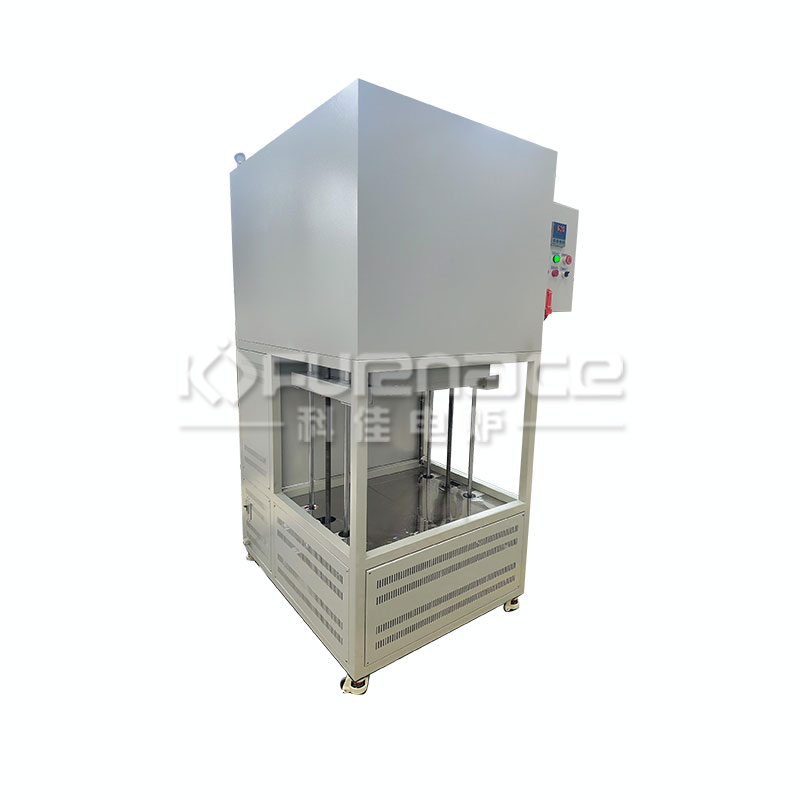

Product Display

1600 ℃ lifting bell cover furnace
