Use box furnace to detect the correct wiring method

   Box furnace is the main product produced by our company. Our products can now be applied to various fields. So what is the correct wiring method for box furnace:

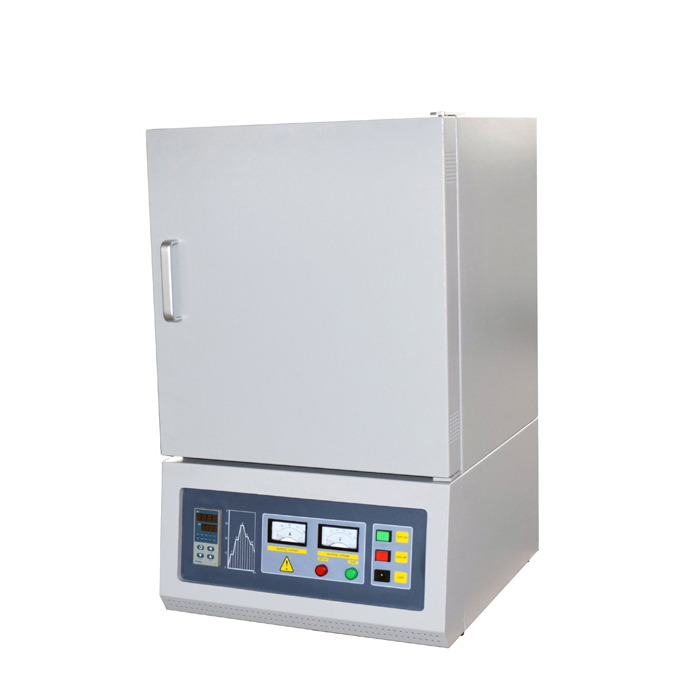

resistivity furnace
   First of all, we must know that when contacting the box furnace, there should be a professional operator to operate safely, and then we can start our work. We must open the upper cover of the electric control cabinet and the electric furnace terminal guard; use one A copper wire of not less than 1 square millimeter is connected to the power supply and the neutral wire of the electric control cabinet; then two aluminum wires of not less than 35 square millimeters are drawn from the user's power supply to the air switch inlet end of the electric control cabinet;

  Secondly, we will use compensation wires to connect the meter and the thermocouple, and use two copper wires not less than 1 square millimeter to connect the normally open contact of the limit switch with the control port of the electric control cabinet; if you verify that the operation is correct Yes, so it can be used correctly.
