Precautions for selecting a 1400 ℃ vacuum box type muffle furnace

When choosing a 1400 ℃ vacuum box type muffle furnace, it is necessary to consider multiple dimensions such as core performance, safety design, operational convenience, and long-term cost. Let’s take a detailed look below!

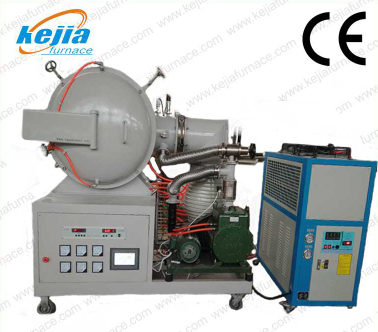

A commonly used vacuum muffle furnace with a temperature of up to 1400 ℃ (click on the image to view product details)

1. Core performance parameters
Temperature control
Temperature control accuracy: Priority should be given to high-precision temperature control systems within ± 1 ℃ to ensure temperature stability during experiments or production processes.
Heating rate: Choose an appropriate heating rate (such as 5-20 ℃/min) according to process requirements to avoid damage to the furnace or sample caused by too fast a rate.
Temperature uniformity: It is required that the temperature uniformity inside the furnace be ≤ ± 5 ℃, which can be achieved through multi-stage heating zones or hot air circulation systems.

Vacuum system
Ultimate vacuum degree: It needs to reach 10 ⁻ Pa or higher to meet the requirements of high vacuum environments.
Extraction rate: Choose a vacuum system equipped with a combination of mechanical pump and molecular pump to ensure rapid vacuum extraction capability.
Vacuum sealing: Metal seals or fluororubber O-rings should be used for furnace doors, flanges, and other parts to prevent air leakage.

Furnace material and structure
High temperature resistant material: The inner wall of the furnace should be made of high-purity alumina fiber or silicon carbide material, which can withstand high temperatures of 1400 ℃ and has good thermal stability.
Structural design: The furnace size should be selected based on the sample size, while considering the impact of the furnace door opening and closing method (such as side opening and top opening) on operational convenience.

2. Safety and reliability
Safety protection function
Overtemperature protection: equipped with independent overtemperature alarm and power-off protection devices to prevent temperature loss of control.
Overpressure protection: The vacuum system needs to be equipped with a pressure sensor, which will automatically shut down when the pressure is abnormal.
Leakage protection: The equipment should have leakage protection function to ensure the safety of operators.

Equipment stability
Heating element lifespan: Choose silicon molybdenum rods or graphite heating elements, which can have a lifespan of thousands of hours and reduce replacement frequency.
Vacuum pump maintenance cycle: Prioritize selecting vacuum pumps with long maintenance cycles (such as over 1 year) to reduce downtime.

3. Convenience of operation and maintenance
Control system
Human machine interface: using touch screen or PLC control system, supporting multi-stage program heating and real-time data recording.
Communication interface: Equipped with RS485, USB, or Ethernet interfaces for easy connection to computers for remote monitoring.

Maintain convenience
Furnace cleaning: The furnace design should be easy to disassemble and clean, reducing maintenance difficulty.
Replacement of vulnerable parts: Heating elements, sealing rings, and other vulnerable parts should be easy to replace to reduce maintenance costs.

4. Cost and after-sales service
Equipment cost
Cost effectiveness: On the premise of meeting performance requirements, choose equipment with reasonable prices to avoid excessive configuration.
Energy consumption: Prioritize equipment that uses high-efficiency insulation materials and energy-saving heating elements to reduce long-term operating costs.

After-sale service
Warranty period: Choose a manufacturer that provides at least 1 year of warranty to ensure worry free initial use of the equipment.
Technical support: Manufacturers should provide 24-hour technical support and quick response repair services to reduce downtime.
Accessory supply: Ensure that manufacturers can provide key accessories such as heating elements and vacuum pumps for a long time to avoid equipment scrapping due to component discontinuation.

5. Other precautions
Environmental adaptability: The equipment should be able to operate stably at temperatures ranging from -10 ℃ to 40 ℃ and adapt to the environmental conditions of different laboratories or production workshops.
Compliance: The equipment must comply with international safety standards such as CE and UL to ensure compliance for export or domestic use.
Scalability: Considering future process upgrade requirements, choose equipment that supports expansion functions (such as adding atmosphere control, rapid cooling, etc.).

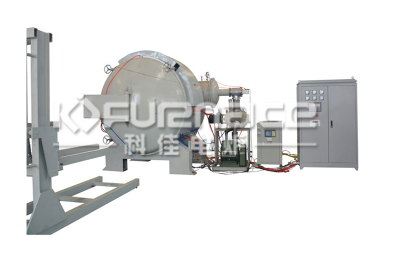

Industrial vacuum muffle furnace with a maximum temperature of 1400 ℃ (click on the picture to view product details)

In general, when choosing a 1400 ℃ vacuum muffle furnace, it is important to pay attention to the above points. You can communicate the parameters with relevant technical personnel before making the selection, so that you can choose a vacuum muffle furnace that is more suitable for yourself!Click to learn more 1400℃ Vacuum furnaces! Or click on online customer service to learn more about product information!
