Core advantages of vertical graphite vacuum furnace

Vertical graphite vacuum furnace is a high-end heat treatment equipment that combines vertical structure, graphite thermal field and vacuum environment. With customized structural design and good performance, it is widely used in the fields of aerospace, new energy, semiconductor, metallurgy, electronic ceramics and other material manufacturing. It is mainly used for high-temperature sintering, vacuum annealing, reduction purification, brazing and other processes of materials. Compared to traditional horizontal graphite vacuum furnaces and ordinary vacuum furnaces, vertical graphite vacuum furnaces have significant core advantages in space utilization, heating efficiency, product quality, and energy consumption control. Below is a detailed breakdown of its core highlights, helping industry users accurately recognize the value of equipment and providing professional references for selection.

Vertical graphite vacuum muffle furnace with a temperature of up to 2000 ℃ (click on the picture to view product details)

1. Vertical structure design, high space utilization, suitable for large-scale layout
The vertical graphite vacuum furnace adopts a vertical layout, with a compact and orderly overall structure, occupying only 1/3-1/2 of the same capacity horizontal graphite vacuum furnace, saving workshop production space, especially suitable for enterprises with limited workshop assembly line planning and space. At the same time, the vertical structure can utilize gravity to assist in the vertical transportation of materials, avoiding the problems of material accumulation and transportation jamming in horizontal equipment, constructing an efficient automated production line, greatly improving the overall production efficiency of the workshop, and adapting to the needs of large-scale production.

2. Supported by graphite thermal field, the heating is fast and uniform, and the temperature control accuracy is extremely high
The graphite thermal field is the core competitiveness of vertical graphite vacuum furnaces. Compared with the resistance wire thermal field, graphite has advantages such as high temperature resistance, good thermal conductivity, uniform thermal radiation, and strong chemical stability. Combined with the vertical structure’s thermal field distribution characteristics, it forms a greater heating advantage. On the one hand, the heating rate of graphite heating element is extremely fast, which can achieve a rapid heating of 10-20 ℃ per minute. Compared with ordinary resistance wire thermal field vacuum furnaces, the heating efficiency is improved, the heat treatment cycle is greatly shortened, and the unit time output is increased; On the other hand, the thermal radiation uniformity of graphite thermal field is better, and the temperature uniformity of the effective heating zone in the furnace can be controlled within ± 5 ℃, avoiding local overheating or uneven heating of materials, ensuring consistent performance of each batch and product, and significantly reducing the defect rate. It is especially suitable for precision materials with strict heating uniformity requirements (such as semiconductor materials, precision ceramics, aerospace components).

3. Controllable high vacuum environment, eliminating oxidation pollution and ensuring product purity
The vertical graphite vacuum furnace is equipped with a high-precision vacuum system, which can easily achieve a high vacuum degree of 10 ⁻³~10 ⁻⁴ Pa, effectively extracting oxygen, water vapor, impurity gases, etc. from the furnace, providing a pure vacuum environment for material heat treatment, and fundamentally eliminating problems such as material oxidation, carbonization, and decarbonization. At the same time, the device supports atmosphere compatible design and can flexibly introduce inert gases such as nitrogen and argon, or reducing gases such as hydrogen and ammonia decomposition gas according to process requirements, achieving dual protection of vacuum and atmosphere. It is suitable for vacuum sintering of easily oxidizable materials and can also meet complex process requirements such as reduction and nitriding. The products processed by vertical graphite vacuum furnace have a smooth and oxygen free surface, no impurity pollution, higher purity, and do not require secondary processing such as polishing and acid washing, which not only reduces production costs but also increases product added value.

4. Better high-temperature performance, suitable for complex processes
Relying on the high-temperature resistance characteristics of graphite thermal field, the vertical graphite vacuum furnace can achieve ultra-high temperature heat treatment. The maximum temperature of conventional models can reach 1800 ℃, and some customized models can exceed 2200 ℃, which can meet the ultra-high temperature sintering and purification needs of refractory metals, special ceramics, high-temperature alloys, semiconductor materials and other high-temperature resistant materials. It can better simulate the complex process curves of heating, insulation, and cooling, and adapt to the personalized heat treatment needs of different materials. Whether it is ultra-high temperature sintering, vacuum annealing, precision brazing, or material purification, the vertical graphite vacuum furnace can operate stably, helping enterprises achieve precision process implementation.

5. Significant energy conservation and consumption reduction, with lower long-term operating costs
The vertical graphite vacuum furnace has outstanding advantages in energy-saving design. On the one hand, the thermal conductivity of graphite thermal field is high and the heat loss is small. Coupled with multi-layer good refractory fiber insulation structure, it can effectively reduce heat loss and achieve higher heat utilization rate than ordinary vacuum furnaces; On the other hand, the equipment adopts an intelligent PID temperature control system, which can automatically adjust the heating power according to the process stage, avoiding ineffective energy consumption. At the same time, the vertical structure has stronger thermal field concentration, further reducing energy waste. Through practical application verification, the energy consumption per unit product of vertical graphite vacuum furnaces is reduced by 20% -45% compared to horizontal graphite vacuum furnaces and ordinary vacuum furnaces. Long term large-scale production can save a lot of energy costs. In addition, high-quality materials are used for core components such as graphite heating elements and seals, which have a long service life, low failure rate, reduce equipment maintenance and component replacement costs, and further reduce the long-term operational investment of the enterprise.

6. High degree of automation, safe and convenient operation, stable and reliable operation
Modern vertical graphite vacuum furnaces are equipped with PLC intelligent control systems, which support one click start, program setting, and unmanned operation. They can preset complete process curves, achieve full process automation control of vacuum extraction, heating, insulation, cooling, vacuum release, etc., greatly reducing the intensity of manual operation and minimizing human operation errors. At the same time, the equipment is equipped with a comprehensive safety protection system, including over temperature alarm, abnormal vacuum degree alarm, pressure alarm device, emergency stop protection, water cooling fault alarm, etc., which can effectively avoid safety risks such as over temperature, vacuum leakage, and furnace damage, ensuring the safety of operators and equipment. In addition, the vertical structure of the furnace has better sealing performance, adopts a high-temperature sealing structure, reduces gas leakage rate to a very low level, and has strong operational stability, which can meet the 24-hour continuous uninterrupted production needs and improve equipment utilization.

7. Wide material adaptability, able to meet the production needs of multiple scenarios
The vertical graphite vacuum furnace has strong adaptability and can handle various forms and materials, including powder (lithium battery materials, metal powders), block (precision components), sheet (semiconductor chips), column (ceramic bodies) and other different forms of materials, as well as high-temperature alloys, semiconductor materials, electronic ceramics, catalysts, refractory metals and other materials. At the same time, the equipment can be customized according to the user’s production requirements, process parameters, and material characteristics, adjusting furnace size, graphite thermal field specifications, vacuum system configuration, temperature control accuracy, etc., to meet the full process requirements from small-scale, pilot scale to industrial mass production, and meet the personalized production needs of different industries and enterprises.

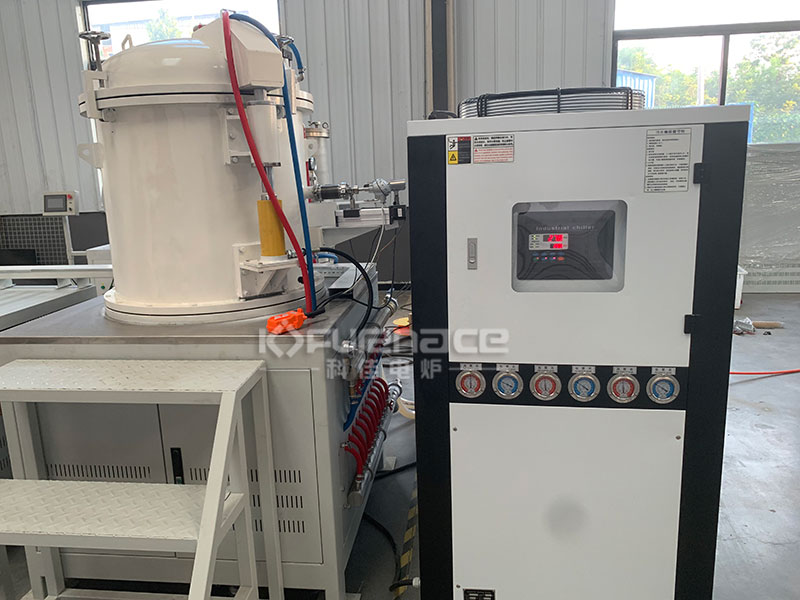

Vertical graphite vacuum furnace (click on the image to view product details)

Summary
The core advantages of vertical graphite vacuum furnaces can be summarized as follows: vertical structure saves space, graphite thermal field is uniform and fast, high vacuum maintains purity, wide adaptability to ultra-high temperatures, energy saving and cost saving, automation is more worry free, strong adaptability and easy customization. It better solves the pain points of slow heating, uneven heating, high energy consumption, large space occupation, and poor adaptability of traditional vacuum furnaces. It can not only ensure the heat treatment quality of high-end materials, but also improve production efficiency and reduce operating costs. It is the core equipment for precision manufacturing to achieve fine, large-scale, and efficient heat treatment. For enterprises pursuing product quality upgrades, production efficiency improvements, and cost optimization, vertical graphite vacuum furnaces are not only a better solution for equipment selection, but also an important support for promoting process upgrades and enhancing core competitiveness. If you need to customize an exclusive vertical graphite vacuum furnace solution based on specific material characteristics, process requirements, and production scale, you can combine parameters such as temperature range, vacuum degree, and atmosphere type to achieve better matching between equipment and process, and better realize the value of equipment.Click to learn more customized vacuum furnaces! Or click on online customer service to learn more about product information!
