1600℃ Three Temperature Zone Tube Furnace

1600℃ Three Temperature Zone Tube Furnace

Model:KJ-T1600-L6012CB3

Description:

KJ-T1600-L6012LB3 three temperature zone high temperature atmosphere tube furnace three digital temperature controllers can independently control the temperature, and can set 30 sections of temperature rise and fall programs.

Detailed
Product Introduction:

KJ-T1600-L6012LB3 three temperature zone high temperature atmosphere tube furnace three digital temperature controllers can independently control the temperature, and can set 30 sections of temperature rise and fall programs, temperature zone 1 (the center of the heating zone) is heated by silicon carbide rods, and the other two Two temperature zones are heated with silicon molybdenum rods. This three-temperature zone high-temperature atmosphere tube furnace can form a temperature gradient, adjust the temperature of the three temperature zones, and prepare functional materials under the thermal gradient. It is also suitable for CVD method to make thin films. Epitaxial growth. The furnace body adopts a double-layer shell structure and is equipped with an air-cooling system, so that the surface temperature of the shell is less than 60 degrees. The heat preservation material of the furnace is made of high-purity alumina, which is environmentally friendly and energy-saving, and can reduce heat loss. The surface of the inner furnace is coated with The high-temperature alumina coating can improve the heating efficiency of the equipment and at the same time extend the service life of the instrument.Belonging to a type of tube furnace.

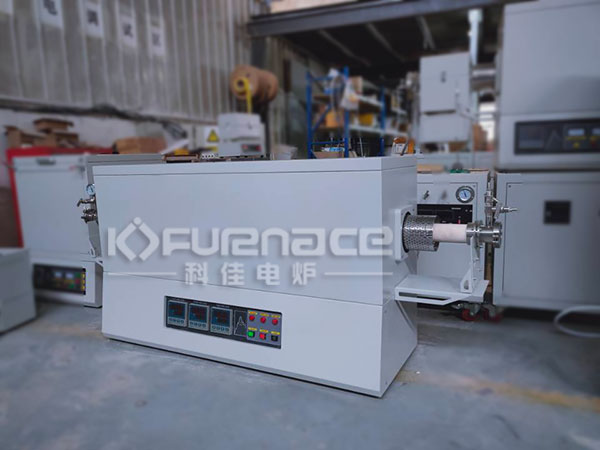

Actual photo of a 1600 ℃ three temperature zone tube furnace

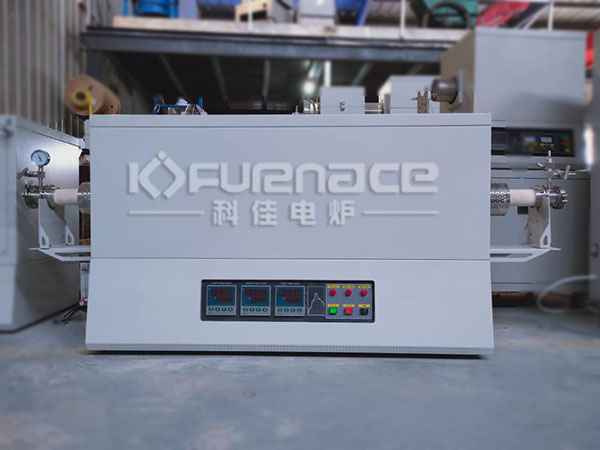

Actual photo of a 1600 ℃ three temperature zone tube furnace


Application:

KJ-T1600-L6012CB3 three-temperature zone vacuum atmosphere tube furnace is mainly used for experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc. Used for pre-sintering, sintering, coating, high temperature pyrolysis and low temperature deposition (CVD) processes of electronic ceramic products.


The main technical parameters:
Product name 1600℃ high temperature tube furnace with three temperature zones
Product model KJ-T1600-L6012LB3
Sample specifications More specifications can be customized according to user needs
Working temperature 1300℃, 1500℃
Maximum temperature 1400℃, 1600℃
Temperature control system Temperature control method: Two temperature control systems are controlled separately, and both adopt PID method to adjust 30-segment programmable automatic control
Temperature control accuracy ± 1℃
Heating rate Suggest 0-10°C/min, max. 20°C/min
Temperature control protection with over-temperature and broken couple alarm function
Furnace size Φ60mmX1200mm
Heating zone Total temperature zone length 660 mm
Temperature zone 1 220 mm heated by silicon carbide rods, working temperature 800-1400°C
Temperature zone 2 220 mm is heated by silicon molybdenum rod MoSi2, working temperature 800-1600°C
Vacuum sealing system A set of stainless steel vacuum sealing flange is included in the standard configuration of the instrument, and stainless steel shut-off valves are installed at both the outlet and inlet ends. The vacuum degree: 10-2 torr (using a mechanical pump); 10-5 torr (using a molecular pump)
Heating element Silicon molybdenum rod, silicon carbide rod
Working voltage AC 220V single item 50 Hz
Maximum power 10KW
Electrical certification CE certification

Actual photo of a 1600 ℃ three temperature zone tube furnace
Actual photo of a 1600 ℃ three temperature zone tube furnace
