Introduction:
KJ-V1200-JS223 vacuum furnace is used for vacuum annealing and brazing of powder material such as,rare earth permanent magnet alloy, carbide, metal ceramics, high temperature alloy, cemented carbide alloy, ceramic, etc. The furnace is with metal shield chamber and equipped with a mechanical rotary vacuum pump,and diffusion pump to ensure a max. high vacuum degree of 6.7x10-4pa(cool state).
Features:
3.The temperature is controlled by precision SCR.
Furnace main specifications
KJ-V1200-JS223 vacuum furnace is used for vacuum annealing and brazing of powder material such as,rare earth permanent magnet alloy, carbide, metal ceramics, high temperature alloy, cemented carbide alloy, ceramic, etc. The furnace is with metal shield chamber and equipped with a mechanical rotary vacuum pump,and diffusion pump to ensure a max. high vacuum degree of 6.7x10-4pa(cool state).
Features:
-
Double layer steel casting with water jacket to support water cooling to keep case
temperature lower;
3.The temperature is controlled by precision SCR.
Furnace main specifications
| Model | KJ-V1200-JS223 |
| Furnace Part | |
| Display |
Touch Screen Picture for reference only 10” LCD touch screen can operate both furnace and vacuum pump systems. |
| Body structure | Double Layer steel casting support water jacket |
| Furnace shell | High intensity carbon steel with electrostatic spraying |
| Door structure | Pneumatic valve to control furnace door opening/closing |

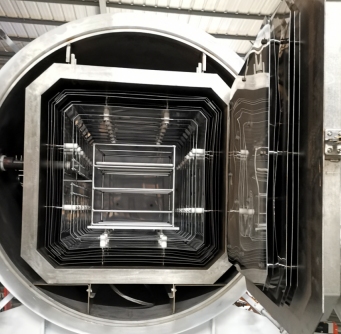

| Furnace chamber |
Metal Shiled (Stainless steel plate + Molybdenum Plate) |
| Working temp. | <=1200℃ |
| Heating rate | Suggest <10℃/min |
| Heating elements | Molybdenum-belt |
| Furnace chamber size | 200*200*300mm(Width*Height*Depth) |
| Temperature control accuracy | +/-1℃ |
| Temperature Control |
The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set 2. Temperature control accuracy ±1ºC 3, with over-temperature protection, broken couple protection 4. The instrument has the function of temperature self-tuning |
| Sealing method | Vacuum tank |
| Over-temperature alarm | Yes |
| Over-current protection | Yes |
| Thermocouple broken indication | Yes |
| Temperature measuring | S type thermocouple |
| Suction mouth | 1 pc |
| Gas Outlet Port | 1 pc |
| Gas Inlet Port |
1 pc Support to insert protective gas |
| Vacuum Breaker | 1pc |
| Power supply | 380V 60Hz 3 phases |
| Max. Power(for heating) | 25KW approx.(Base on final design) |
