Product Introduction:
The main technical features:
The KJ-VX900-100CLD external heating lifting vacuum furnace uses silicon molybdenum rods as heating elements, with a working temperature of up to 900 ℃. Adopting a bottom lifting structure, the furnace door can move parallel, making it convenient for customers to pick up and place materials. This device combines vacuum/atmospheric and high-temperature heating, suitable for high-temperature thermoforming of new materials such as powder metallurgy and functional ceramics, as well as vacuum sintering of transparent ceramics, industrial ceramics, other metals, and alloy materials composed of refractory metals. Click to view more vacuum furnaces!

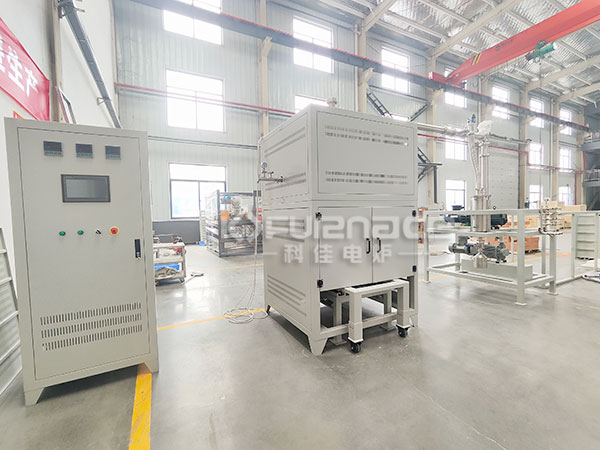

Actual photo of external heating lifting vacuum furnace
The main technical features:
1. Convenient and fast loading and unloading of materials: Adopting a bottom loading design, the furnace door can move parallel, making it convenient for customers to load and unload materials.
2. Intelligent temperature control system: adopts PID mode to regulate temperature control, can set 30 heating and cooling programs, and the instrument has temperature self-tuning function.
3. Temperature measurement is simple and fast: Two N-type thermocouples are used for temperature signal acquisition. The furnace temperature can be digitally displayed on the control cabinet, making it convenient for operators to observe and record.
4. Low shell temperature: The double-layer steel shell is equipped with dual cooling fans to reduce the temperature of the furnace shell.
|
Furnace Part
|
|
|
Model |
KJ-VX900-100CLD |
|
Furnace structure |
|
|
Display |
10” LCD Touch Screen, Independent electric cabinet |
|
Chamber size (Width x Height x Depth) |
600x600x520mm (Can be customized according to customer needs) |
|
Stainless steel tank |
|
|
Working temperature |
≤900℃ |
|
Heating Element |
SIC ROD |
|
Thermocouple |
|
|
Temperature Distribution |
±5℃ |
|
Heating rate |
0-10℃/min |
|
Temperature Control |
The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Using PID mode to adjust temperature control, 30 sections of heating and cooling programs can be set 2. Temperature control accuracy ±1ºC 3, with over-temperature protection, broken couple protection 4. The instrument has the function of temperature self-tuning |
|
Over-temperature alarm |
Yes |
|
Over-current protection |
Yes |
|
Thermocouple broken indication |
Yes |
|
Suction mouth |
1 pc |
|
Gas Outlet Port |
1 pc |
|
Gas Inlet Port |
1 pc Support to insert protective gas |
|
Vacuum Breaker |
1pc |
|
Vacuum Pump System
|
|
|
Max. Vacuum |
<=10Pa(Cool State, empty furnace) |
|
Vacuum Valve |
KF40 pneumatic flapper valve + KF25 pneumatic flapper valve |
|
Vacuum Gauge |
Inficon vacuum gauge Measurement range: 3.8x10 -5 to 1125 Torr |
|
Warranty
|
|
|
Warranty Range |
One year limited warranty with life time support. (Consumable parts such as heater and crucibles are not covered by the warranty, please order the replacement at related products) |
|
Free technical support |
Lifetime |

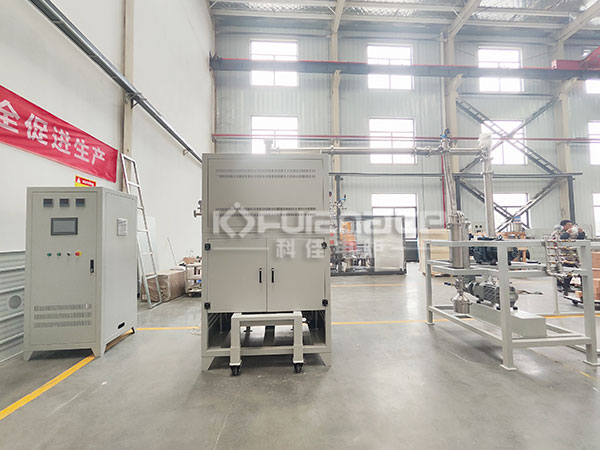

Actual photo of external heating lifting vacuum furnace
