Touch screen high-temperature vacuum furnace

Model：KJ-VX1200-36CWG

Description：

Product Introduction:

The KJ-VX1200-36CWG vacuum furnace is a horizontal, single chamber structure, with a double layer water-cooled furnace body and furnace door, and a front door structure. Composed of furnace body, heating chamber, vacuum system, water cooling system, electric control and power supply system. Can perform vacuum brazing, vacuum sintering, and other vacuum heat treatments. It belongs to a type of vacuum furnace.

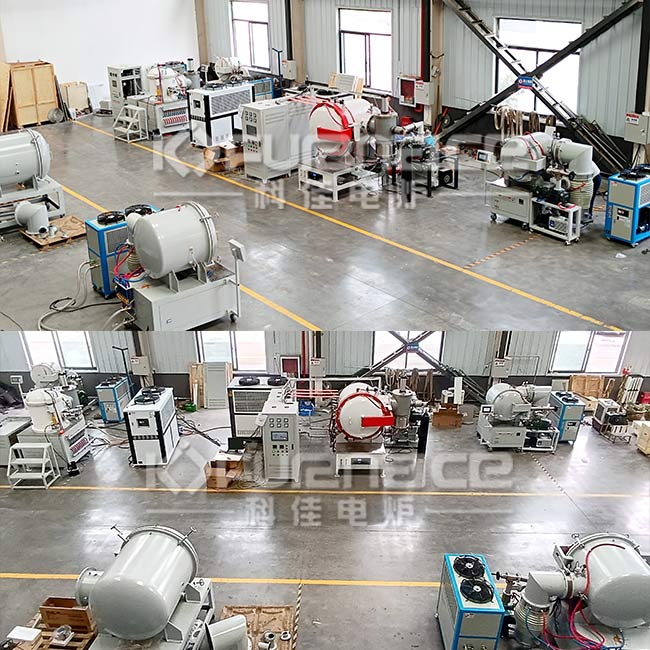

Touch screen high performance vacuum furnace live shot

The main technical parameters:

Name	1200 ℃ Vacuum Heat Treatment Furnace Equipment
Model	KJ-VX1200-36CWG
Structural type	horizontal single chamber structure
Power supply	3-phase 380V, 50HZ
Effective furnace size	300mm×300mm×400mm
Furnace material	alumina refractory fiber
Maximum heating temperature	1200℃
Normal working temperature	1100℃
Constant temperature accuracy	±1℃
Temperature control meter	Touch screen control and display of temperature
Maximum power	25 KW(whichever is actual)
Heating rate	10℃/min
Ultimate vacuum degree	6.67* 10-3Pa（empty furnace, cold state, purified）
Vacuum unit	rotary vane pump+roots pump+diffusion pump unit
Gas flow	The furnace body is equipped with a reserved air inlet, which can flow various inert gases
Cooling method	The water cooler circulates cooling water to cool the furnace body and door
Control system	manual opening and closing of high vacuum valve

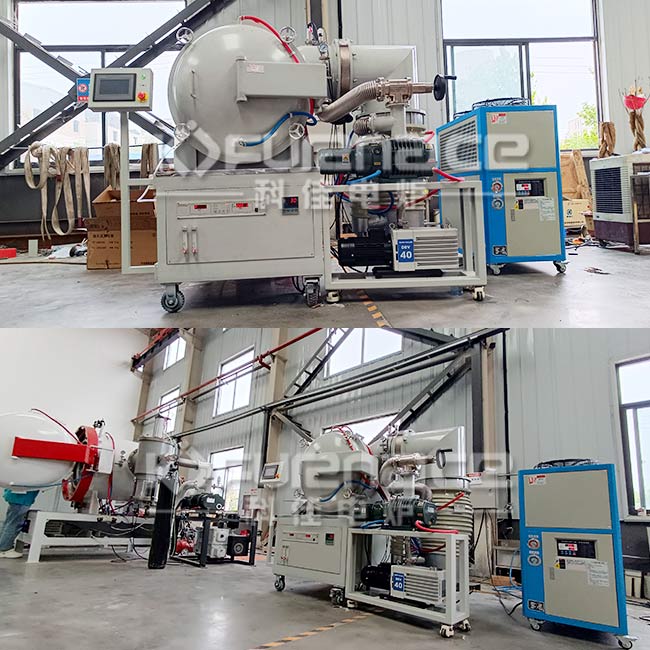

Touch screen high performance vacuum furnace live shot

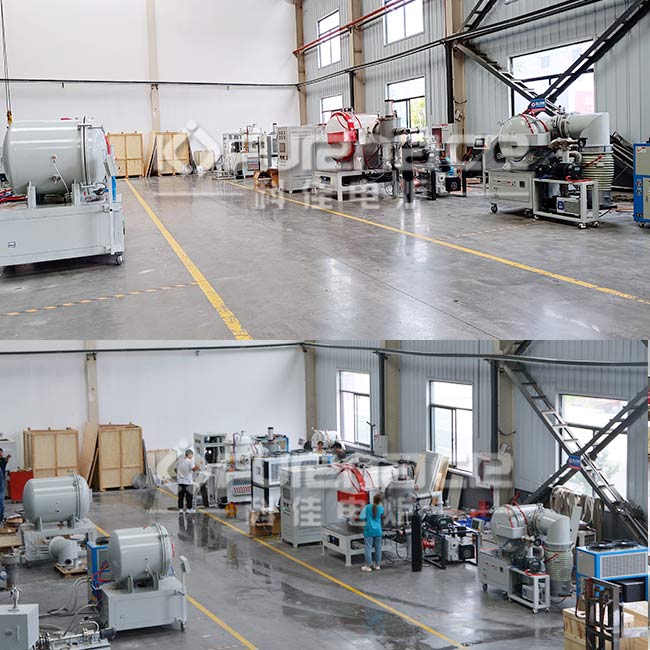

Product Display
