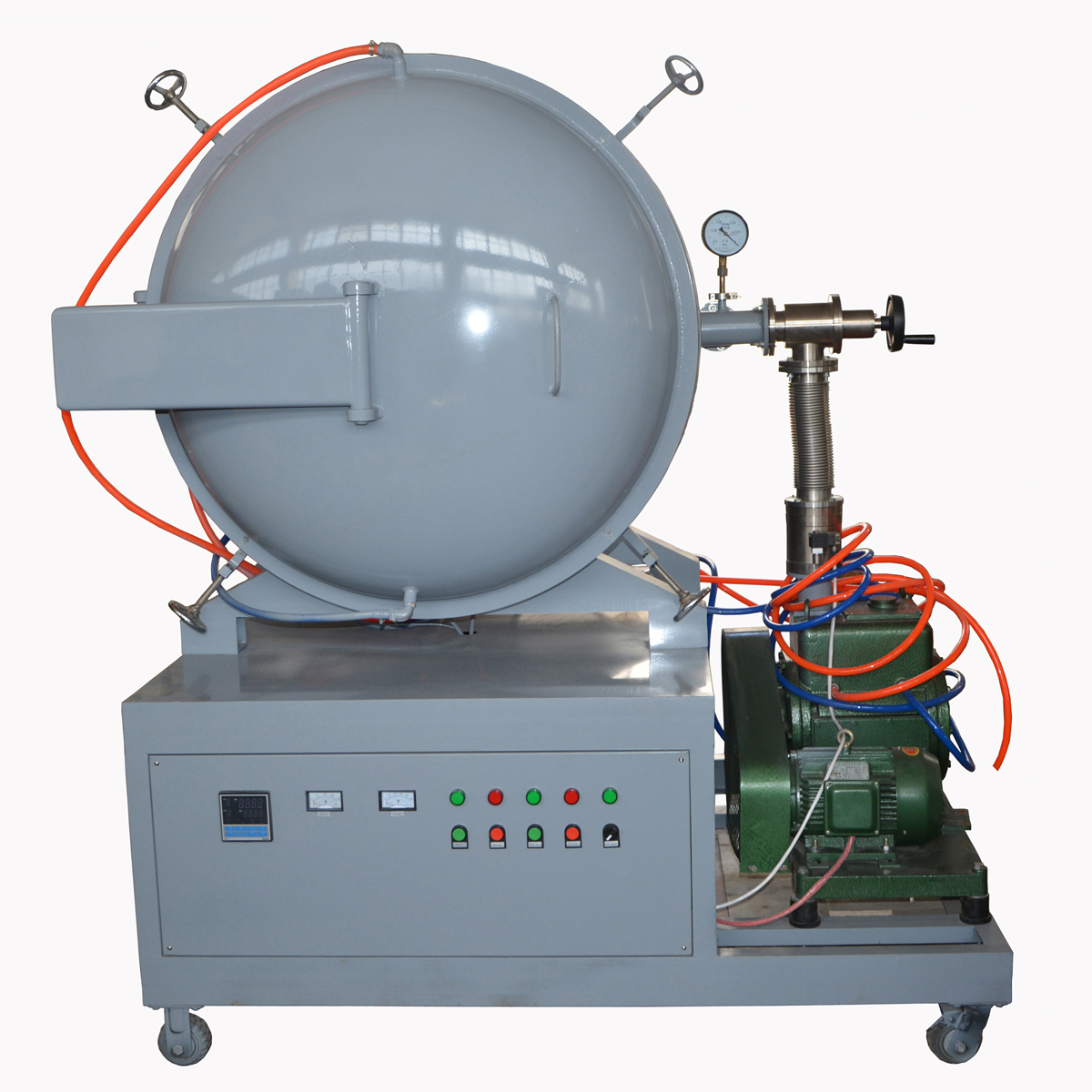

Features of vacuum sintering furnace:
1.Double layer steel casting to keep case temperature lower;2.High purity fiber alumina board chamber for the best energy saving;
3.The temperature is controlled by precision SCR(Silicon Controlled Rectifier)
with accuracy +/-1 C and 30 segments programmable control;
4.The fast rate of temperature increasing and decreasing.
5.The furnace chamber is ceramic fiber brick with excellent thermal
insulation,vacuum reservoir with water cooling system;
6.The furnace is equipped with the function of power off automatically when door furnace opening,function of over temperature alarm,etc.
Technical parameters of vacuum sintering furnace:
| Model | PT-1700V |
| Max. temperature | 1700℃ |
| Working temperature | 1600℃ |
| Temperature accuracy | +/-1℃ |
| Heating rate | 0-20C/min |
| Dimension | 200×200×300mm |
| Temperature control | Digital 50 segments programmable |
| Max. vacuum level | 7*10ˆ(-3)Pa |
| Heating element | MoSi2 |
| Refractory material | Alumina ceramic fiber |
| Thermal couple | B type |
| Rated power | 5KW |
| Working voltage | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
