Customized vacuum tube CVD electric furnace

When customizing a vacuum tube CVD electric furnace, it is necessary to comprehensively consider various factors such as application requirements, technical parameters, structural design, and after-sales service. Let’s take a detailed look at what to pay attention to when customizing a vacuum tube CVD electric furnace!

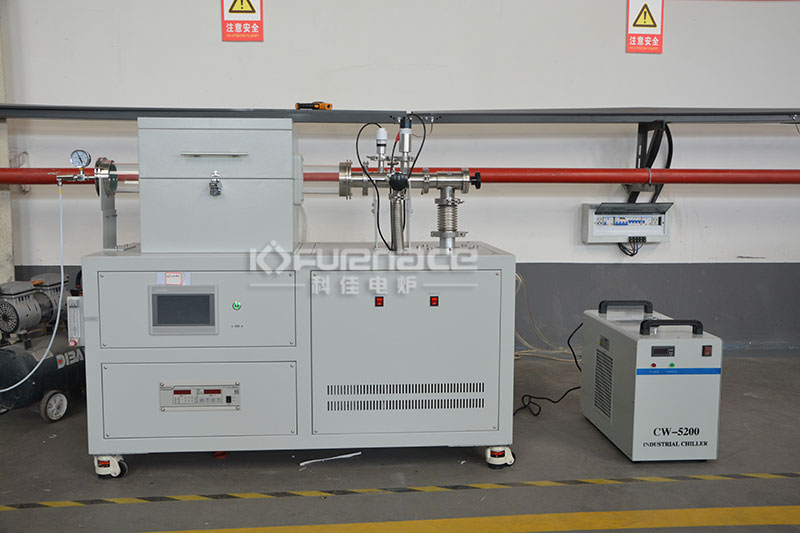

A customized vacuum tube CVD electric furnace (click on the image to view product details)

1. Clarify application requirements
CVD application types: Determine the CVD applications that need to be performed, such as growing thin films, synthesizing nanomaterials, preparing coatings, etc. Different applications may require different types of CVD furnaces.
Material type: Select a suitable CVD electric furnace based on the characteristics and properties of the required material. For example, organic materials may require low-temperature CVD, while inorganic materials may require high-temperature CVD.

2. Pay attention to technical parameters
Working temperature range: Select an electric furnace that meets the required working temperature range for CVD process. Different electric furnaces have different maximum and minimum temperature limits.
Vacuum requirement: Considering the degree of vacuum environment required by the process, choose an electric furnace with corresponding vacuum control capability.
Furnace tube material: The material of the furnace tube has a significant impact on the CVD process. Common furnace tube materials include quartz, corundum, and metal. Quartz furnace tubes are suitable for high temperature and corrosive environments, while metal furnace tubes are suitable for environments that require higher vacuum levels.

3. Consider structural design
Furnace size: Select the appropriate furnace size and volume based on the size and quantity of the processed samples. Ensure that the furnace is large enough to accommodate the samples that need to be processed and maintain uniform deposition of the samples.
Gas control system: The CVD process requires precise control of gas flow rate and proportion. Choose an electric furnace with a reliable gas control system, including the accuracy of gas flow meters, gas mixing methods, and gas supply methods.
Cooling method: A fast and effective cooling method can shorten the working cycle. Consider the cooling method of the electric furnace, such as water cooling or air cooling, and choose according to actual needs.

4. Assess safety and reliability
Safety protection function: Ensure that the selected electric furnace has complete safety protection functions, such as over temperature protection, vacuum monitoring, pressure protection, etc., to ensure the safety of personnel and equipment during the experimental process.
Equipment stability: Choose an electric furnace with a simple structure, easy to clean and replace components to improve the stability and reliability of the equipment.

5. Consider after-sales service and brand reputation
After sales service: Understand the manufacturer’s after-sales service policy and service network to ensure timely technical support and maintenance services during use.
Brand reputation: Choose a brand with good reputation and rich experience to ensure product quality and service reliability.

Multi temperature zone tubular CVD electric furnace (click on the image to view product details)

In general, when customizing a vacuum tube CVD electric furnace, attention should be paid to the above aspects. You can communicate the parameters with relevant technical personnel before choosing, so as to customize a vacuum tube CVD electric furnace that is more suitable for your own experiment!Click to learn more CVD devices! Or click on online customer service to learn more about product information!
