What are the advantages of a vertical tube heat treatment electric furnace?

A vertical tubular heat treatment electric furnace is a vertically designed heat treatment equipment that uses a tubular furnace to achieve processes such as heating, annealing, and quenching of materials. Its core advantages are reflected in structural design, process control, application flexibility, and energy efficiency management, especially suitable for continuous or batch processing of one-dimensional materials such as long bars, pipes, and wires. Let’s take a detailed look at the advantages of vertical tube heat treatment electric furnaces below!

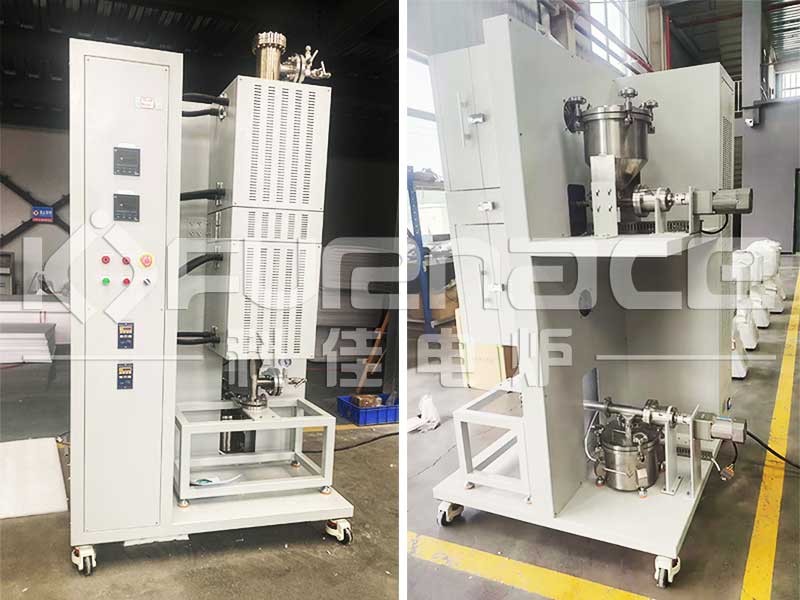

Experimental mini fluidized bed vertical tube furnace (click on the picture to view product details)

1. Vertical structure design: optimizing space utilization and process adaptability
Compact layout:
The vertical design places the furnace vertically, reducing the footprint and making it suitable for workshops or laboratories with limited space. For example, in semiconductor wafer manufacturing, vertical furnaces can be integrated into clean rooms to form compact production lines with lithography, etching, and other equipment.
Gravity assisted process:
Uniform deposition: In chemical vapor deposition (CVD), a vertical furnace allows gas or vapor to naturally sink, and with the help of a rotating base, uniform film coverage can be achieved.
Long material processing: suitable for processing rods and pipes with a length exceeding 1 meter (such as photovoltaic silicon rods and titanium alloy pipes), to avoid bending deformation caused by self weight in horizontal furnaces.
Modular Expansion:
The furnace body can be designed in layers, with independent temperature control for each layer, supporting continuous execution of multiple processes (such as preheating, insulation, cooling), and improving production speed.

2. Efficient thermal field control: ensuring temperature uniformity and process accuracy
Three dimensional heating system:
Heating element layout: Resistance wires or silicon carbide rods are vertically distributed around the furnace, combined with upper and lower temperature control zones, to eliminate the common “end effect” in horizontal furnaces.
Temperature uniformity: By optimizing the airflow distribution through CFD simulation and using high-precision temperature controllers (such as PID control), better temperature uniformity in the furnace can be achieved, meeting the demanding heat treatment requirements of aerospace materials (such as high-temperature alloys).
Rapid temperature rise and fall capability:
Heating rate: Short time rise to the target temperature (such as 1200 ℃) to improve production efficiency.
Cooling control: Equipped with air or water cooling systems, it can accurately control the cooling rate and achieve precise control of quenching, tempering and other processes.

3. Flexibility in atmosphere control: meeting diverse process requirements
Multi atmosphere compatibility:
Inert gas protection: Introduce argon (Ar) or nitrogen (N ₂) to prevent material oxidation (such as annealing titanium alloys).
Reductive atmosphere: Inject hydrogen (H ₂) or carbon monoxide (CO) to achieve surface treatments such as carbonization (such as deposition of hard coatings on cutting tools).
Vacuum environment: Equipped with mechanical or molecular pumps, the vacuum degree can reach 10 ⁻ Pa, suitable for heat treatment of high-purity materials such as semiconductor silicon wafers.
Dynamic adjustment of atmosphere:
By adjusting the gas flow rate in real-time through a mass flow meter (MFC) and combining it with an oxygen probe or residual gas analyzer (RGA), closed-loop control of the atmosphere composition is achieved to ensure process repeatability.

4. Automation and Intelligence: Improving Production Efficiency and Safety
Integrated control system:
Integrated interface: supports preset and storage of process parameters (temperature, time, atmosphere), enabling one click startup and continuous production of multiple batches.
Remote monitoring: Real time transmission of equipment operation data to the cloud through industrial Ethernet or 4G/5G modules, supporting remote fault diagnosis and process optimization.
Security protection mechanism:
Overtemperature protection: Independently set multi-level overtemperature alarms (such as 1250 ℃, 1300 ℃), automatically cut off power and start cooling.
Gas leak detection: It can be equipped with a hydrogen sensor or infrared detector, which automatically shuts off the gas source and starts exhaust when there is a leak.
Mechanical interlock: The furnace door can be linked with the heating system, and heating cannot be started when it is not closed to prevent personnel from getting burned.

5. Energy efficiency optimization and environmental design: reducing operating costs
Optimization of insulation layer: Using multi-layer ceramic fibers or nano insulation materials, the furnace wall temperature rise is less than 50 ℃, reducing heat loss.
Exhaust gas treatment: can be equipped with catalytic combustion or activated carbon adsorption devices to purify and treat organic volatile compounds, avoiding environmental pollution.

6. Application scenarios and industry value
Semiconductor industry:
Wafer Heat Treatment: Vertical furnaces are used for processes such as silicon wafer oxidation and annealing, with good temperature uniformity and support for customized chip manufacturing.
Silicon carbide (SiC) substrate processing: High temperature graphitization is achieved through a vertical furnace to improve the quality of material crystallization.
In the field of new energy:
Sintering of lithium battery materials: Vertical furnace is used for pre sintering and high-temperature solid-state reaction of positive electrode materials (such as NCM, LFP), controlling grain growth and improving battery cycle life.
Photovoltaic silicon rod annealing: eliminates thermal stress during the crystal pulling process, reduces silicon wafer fracture rate, and improves yield.
Aerospace:
Curing of carbon fiber composite materials: By controlling vertical pressure and temperature gradient, interlayer defects are reduced and the mechanical properties of composite materials are improved.

Customized continuous feeding and discharging vertical tubular electric furnace (click on the picture to view product details)

Summary: The core competitiveness of vertical tube heat treatment electric furnaces
The vertical tube furnace achieves efficient, uniform, and controllable heat treatment processes through vertical structure design, precise thermal field control, flexible atmosphere adjustment, and intelligent integration. Its advantages are not only reflected in technical parameters, but also become commonly used equipment in important manufacturing industries such as semiconductors, new energy, aerospace, etc. through efficiency improvement, cost reduction, and product performance optimization in actual production. With the continuous upgrading of material science and process requirements, vertical tube furnaces will continue to develop towards higher temperatures, higher vacuum, and more intelligent directions, promoting technological innovation in related industries.Click to learn more electric heating tube furnaces! Or click on online customer service to learn more about product information!
