Product Introduction:
The KJ-A1600-64CZ series high-temperature atmosphere furnace adopts a double-layer shell structure and an intelligent program temperature control system, with phase shift trigger and thyristor control. The furnace is made of alumina polycrystalline fiber material. The furnace body adopts a double-layer shell structure, equipped with an air cooling system, high-performance insulation materials, and equipped with a cooling fan, which reduces the surface temperature of the furnace body and saves 60% energy compared to ordinary furnaces. The furnace door and roof are sealed with high-temperature silicone rubber, which can be pre vacuumed and various inert gases can be added.

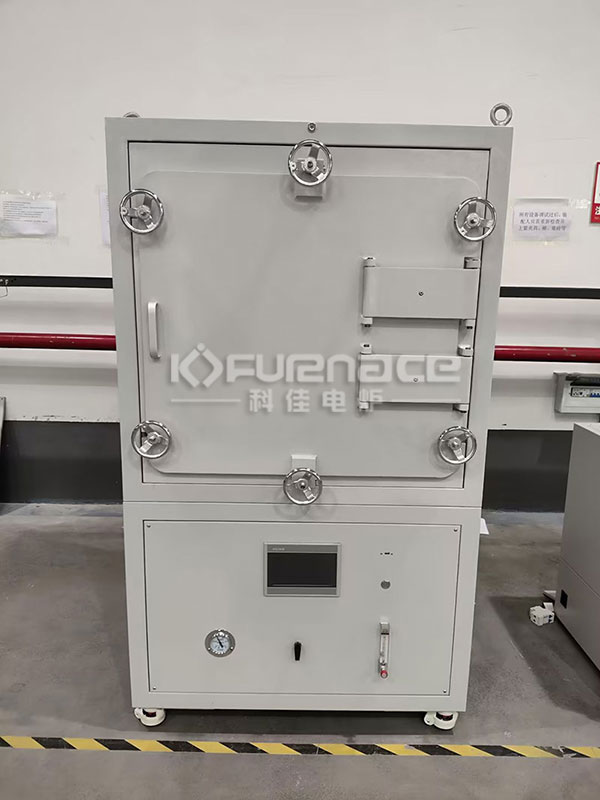

KJ-A1600-64CZ Series Atmosphere Furnace
The KJ-A1600-64CZ series high-temperature atmosphere furnace adopts a double-layer shell structure and an intelligent program temperature control system, with phase shift trigger and thyristor control. The furnace is made of alumina polycrystalline fiber material. The double-layer furnace shell is equipped with an air cooling system.
Product advantages：
1. Low surface temperature, fast temperature rise and fall, energy-saving.
2. High quality aluminum oxide polycrystalline fiber inorganic material formed by vacuum adsorption using Japanese technology has good insulation performance, durability, high tensile strength, no foreign particles, high purity, and significantly better energy-saving effect than other fiber materials.
3. The entire furnace body adopts a double-layer lining structure with an air gap in the middle. Even if the furnace temperature reaches its maximum, the surface of the furnace body can still be safely touched without any burning sensation.
4. The electric furnace adopts energy-saving materials, and the overall energy consumption is only one-third of that of traditional electric furnaces, which is energy-saving and environmentally friendly.
5. The furnace body is equipped with an output voltage and output current monitoring meter, and the heating status of the furnace is clear at a glance.
6. Over temperature alarm and power outage function and leakage protection measures ensure safe and reliable operation.
Detail Specification:
The KJ-A1600-64CZ series high-temperature atmosphere furnace adopts a double-layer shell structure and an intelligent program temperature control system, with phase shift trigger and thyristor control. The furnace is made of alumina polycrystalline fiber material. The furnace body adopts a double-layer shell structure, equipped with an air cooling system, high-performance insulation materials, and equipped with a cooling fan, which reduces the surface temperature of the furnace body and saves 60% energy compared to ordinary furnaces. The furnace door and roof are sealed with high-temperature silicone rubber, which can be pre vacuumed and various inert gases can be added.
KJ-A1600-64CZ Series Atmosphere Furnace
The KJ-A1600-64CZ series high-temperature atmosphere furnace adopts a double-layer shell structure and an intelligent program temperature control system, with phase shift trigger and thyristor control. The furnace is made of alumina polycrystalline fiber material. The double-layer furnace shell is equipped with an air cooling system.
Product advantages：
1. Low surface temperature, fast temperature rise and fall, energy-saving.
2. High quality aluminum oxide polycrystalline fiber inorganic material formed by vacuum adsorption using Japanese technology has good insulation performance, durability, high tensile strength, no foreign particles, high purity, and significantly better energy-saving effect than other fiber materials.
3. The entire furnace body adopts a double-layer lining structure with an air gap in the middle. Even if the furnace temperature reaches its maximum, the surface of the furnace body can still be safely touched without any burning sensation.
4. The electric furnace adopts energy-saving materials, and the overall energy consumption is only one-third of that of traditional electric furnaces, which is energy-saving and environmentally friendly.
5. The furnace body is equipped with an output voltage and output current monitoring meter, and the heating status of the furnace is clear at a glance.
6. Over temperature alarm and power outage function and leakage protection measures ensure safe and reliable operation.
Detail Specification:
| product name | KJ-A1600-64CZ Series Atmosphere Furnace | |
| Model | KJ-A1600-64CZ | |
| Door Structure | Side Door | |
| Furnace structure | Double layer steel casting with dual cooling fan | |
| Display | Touch Screen | |
| Max. Temperature | 1700℃ | |
| Continuous working Temperature | ≤1600℃ | |
| Chamber Material |
Alumina fiber |
|
| Heating Rate | Suggest 0-5℃/min | |
| Accuracy | ±1℃ | |
| Inside Chamber Size (Width*Height*Depth) | 400x400x400mm | |
| Volume | 64L | |
| Heating Element | Mosi2 | |
| Thermocouple | B Type | |
| Temperature control |
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● Over temperature protection and alarm allows for operation without attendant. |
|
| Sealing system |
Furnace door use high temperature silicone rubber seal and seal valves  |
|
| Gas system |
Gas inlet and outlet with shut off valve, can pass nitrogen and other gases to the furnace chamber; Standard equipped with 1 Nitrogen float flow meters(30-300ml/min) which can control the flow rate of gases.  |
|
| Vacuum Pump |
 |
Pumping speed: 4L/s Including the connection to the furnace. Vacuum level: -0.1mpa |
| Working Voltage | AC 415V, 50HZ, Three phases | |
| Output Power | 27KW | |
| Warranty | One-year limited warranty, provide life-time maintenance service. (Consumable parts such as heating elements and thermocouple are not covered by the warranty) | |
| Certificate | CE | |

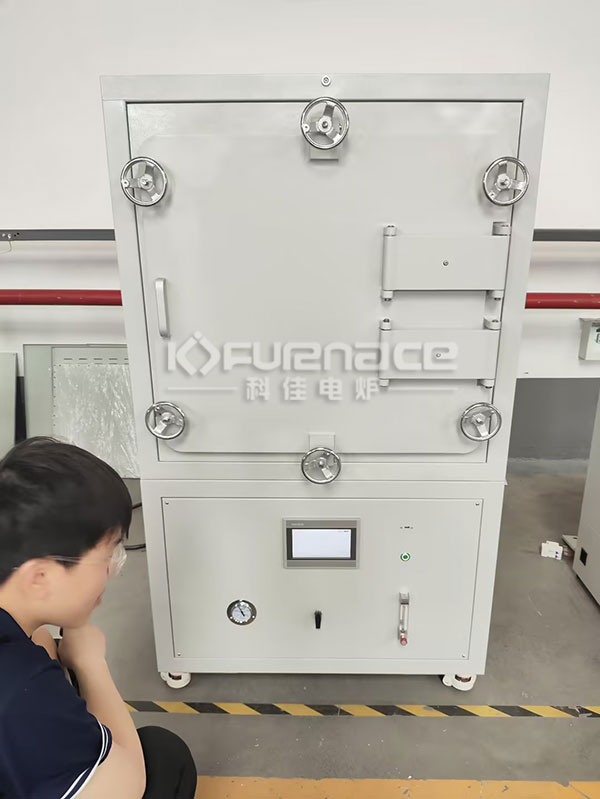

1600 ℃ High Temperature Atmosphere Furnace Testing
