1600C open door high-temperature atmosphere furnace

Model：KJ-A1500-36LS

Description：

The 1600 degree open door high-temperature atmosphere furnace is an internal heating single chamber structure with high-quality silicon molybdenum rods as heating elements. The use of ceramic fiber insulation material has good insulation and energy-sa

Product Introduction:

The 1600 degree open door high-temperature atmosphere furnace is an internal heating single chamber structure with high-quality silicon molybdenum rods as heating elements. The use of ceramic fiber insulation material has good insulation and energy-saving effects. Belongs to a type of atmosphere furnace.

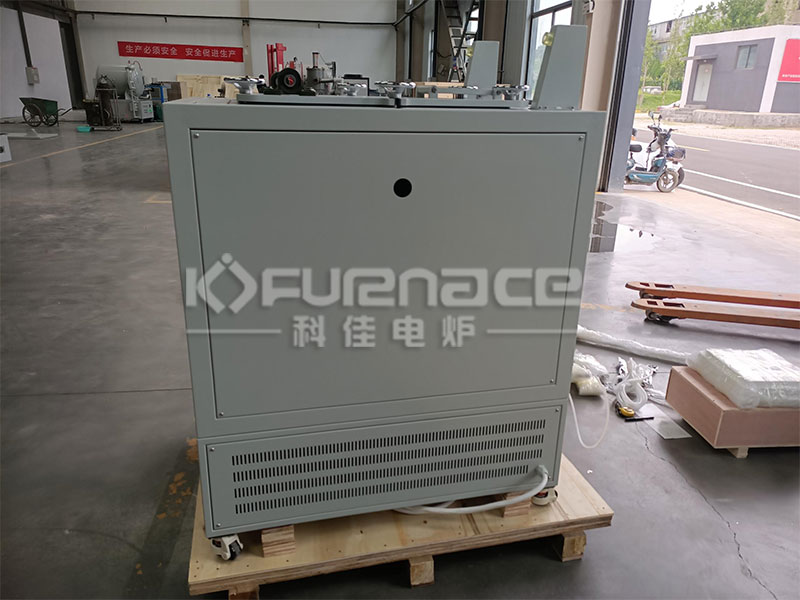

Actual photo of 1600 degree upward opening atmosphere furnace

Application:

The 1600 degree open door high-temperature atmosphere furnace is a heat treatment process that can be applied to electronic components, new materials, and powder materials under vacuum or atmosphere conditions. It is also used for pre firing, sintering, brazing and other processes of electronic ceramic products in metallurgy, machinery, light industry, commodity inspection, higher education institutions, scientific research departments, and industrial and mining enterprises.

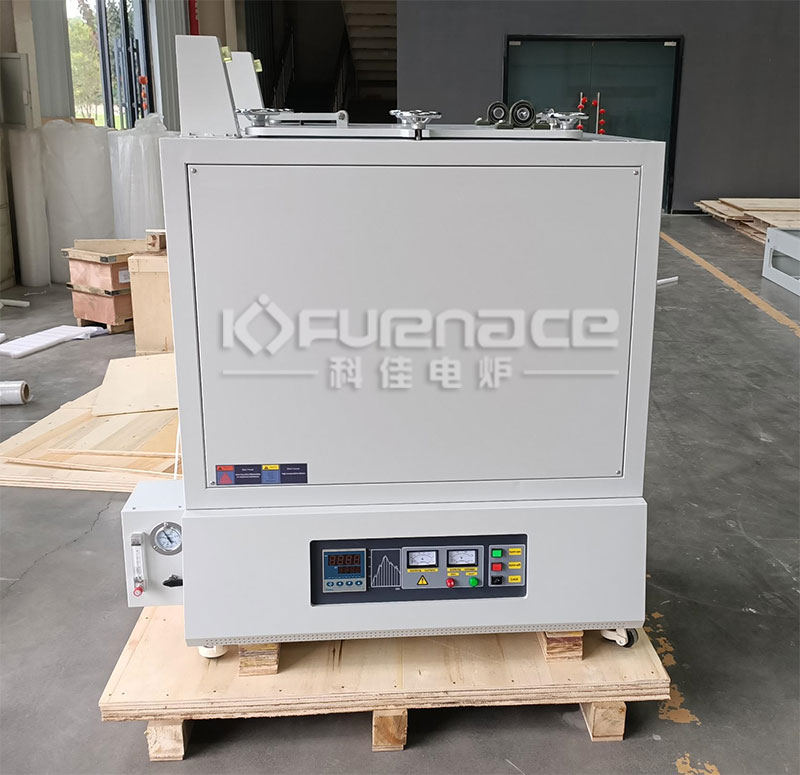

Actual photo of 1600 degree upward opening atmosphere furnace

The main technical parameters:

Model	KJ-A1500-36LS
Furnace shell	Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C.
Furnace liner	Two layers of ceramic fiber insulation materials First layer: 1800deg.C ceramic fiber board Second layer: 1600deg.C ceramic fiber board
Door	Top
Display	LED
Max. Temp.	1600°C
Working Temperature	≤1500°C
Heating Rate	Suggestion 0~10°C/min
Temp. Control Accuracy	±1°C
Temp. Uniformity	±5°C
Inside Chamber Size	300x300x400mm
Temp. control	PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection.
Heating Element	MOSI2
Thermocouple	B Type
Max. Power	12 KW
Working Voltage	380V,3 PHASE, 50Hz 3 Live wires and 1 neutral wire
Chamber material	Alumina Fiber
Warranty	One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)

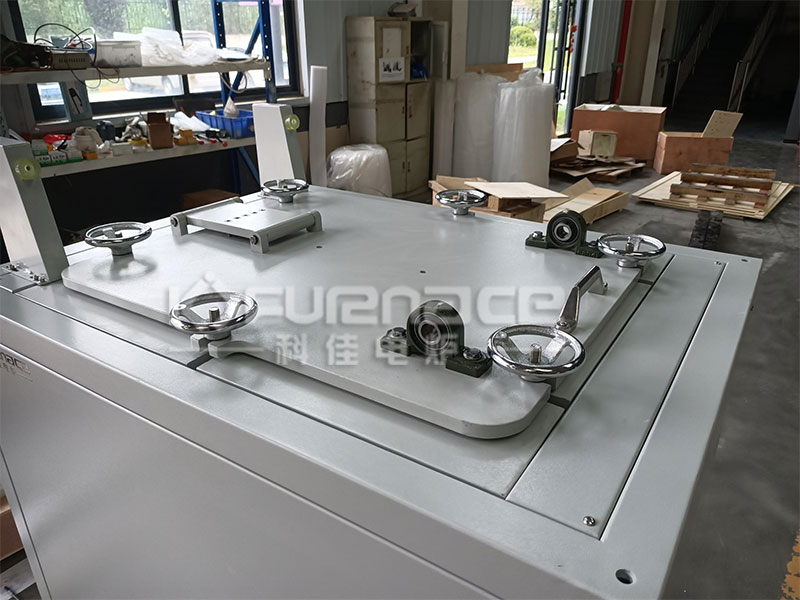

1600C open top high-temperature atmosphere furnace door

Product Display

1600C open door high-temperature atmosphere furnace
