1200¡æTube Furnace

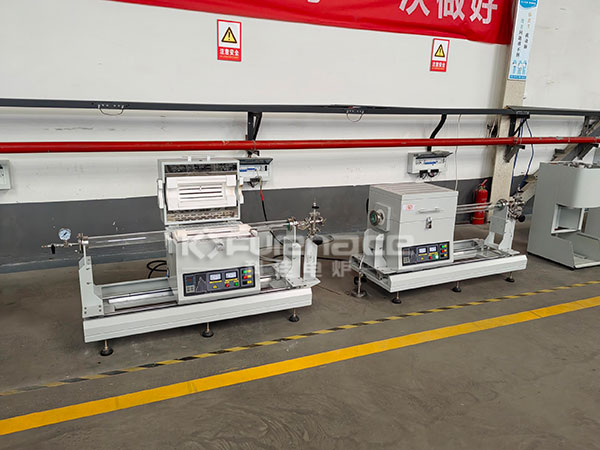

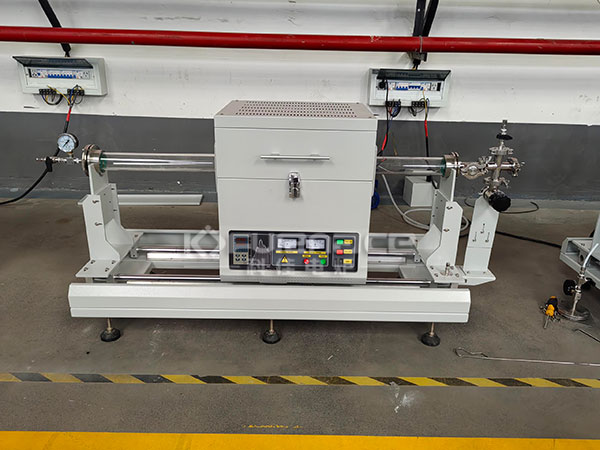

1200¡æ Sliding Rail Tube Furnace

1200¡æ Sliding Rail Tube Furnace

Model:KJ-1200R Tube Furnace
Description:Sliding Rail Tube Furnace can heat the sample rapidly in different environment, such as, vacuum, atmosphere, and air. The main application, quick annealing of many kinds of material, silicidation, diffusion, crystallization and densification, etc.

Features of 1200¡æ Sliding Rail Tube Furnace :

(1).Double layer steel structure with dual air cooling fans
(2).One pair of sliding rails are installed on bottom of furnace, which allows furnace to be manually moved from side to side
(3).Vacuum flanges and a digital vacuum gauge are installed  for immediate use.
(4).Sliding rail length is about 1200mm, the furnace can slide 600 mm distance.

Heating Zone Length 440mm ( single zone )
Heating Elements Fe-Cr-Al Alloy doped by Mo
Temperature Accuracy +/ - 1°C
Sliding Rails / Table Double sliding rail made by Cr plated steel
Sliding length: 1200 mm
Dimensions 550 x 380 x 520  mm ( furnace only)
1500 x 380 x 620 mm ( furnace + sliding )
Max. Temperature 1200°C (<1 hour)
Power 2.5KW
Net Weight ~ 100 Kg
Continuous Temperature 1100°C
Note: there are different Chamber(Tube) sizes for your choice.
