Large diameter 6-zone rotating inclined tube furnace

KJ-TX1100-S146LK6 rotary tube furnace is a high-temperature tube furnace with special rotation and tilting functions. It is designed specifically for sintering inorganic compounds, such as mineral particles and battery materials, with better uniformity. According to different experiments, multiple heating zones, condensers, and exhaust gas collection devices can be selected. Click to view more tube furnaces!

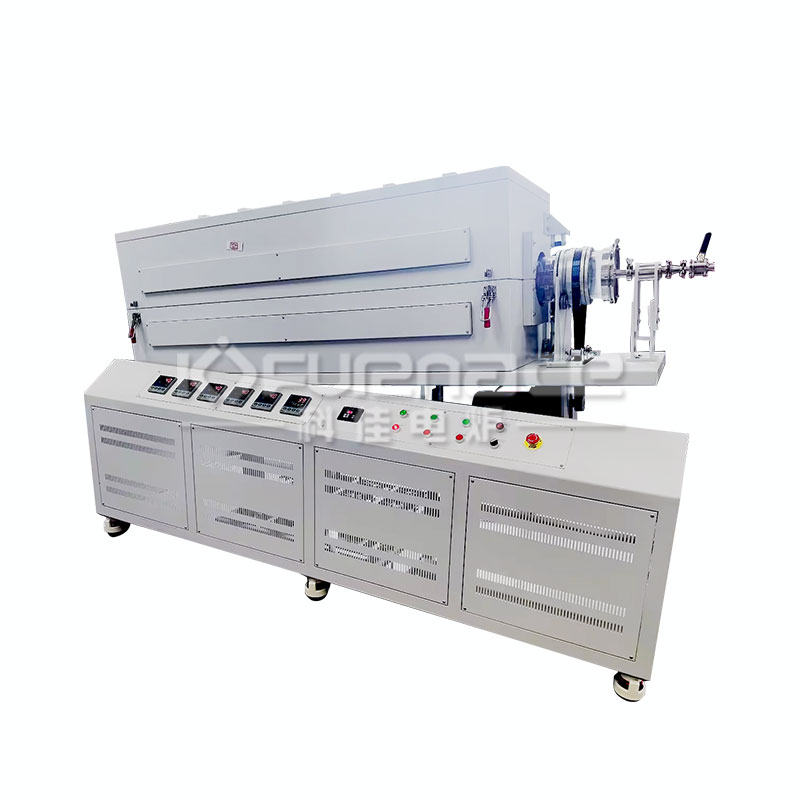

Actual photo of a large diameter 6-zone rotating inclined tube furnace

1.6 independent heating zones: 6 independent heating zones with independent temperature controllers to ensure good and uniform heating.
2. Tiltable and rotatable: The tube body is designed for rotation, with uniform heating. The furnace body can be tilted, and the tilt angle of the sintering material can be adjusted for feeding/discharging, avoiding the hot and cold spots of traditional furnace types.
3. The temperature control accuracy can reach ± 1 ℃: The temperature control system adopts PID regulation and can set 30 temperature rise and fall programs, with a temperature control accuracy of ± 1 ℃.
4. Can operate without human supervision: combined sound and light alarms for overheating and thermocouple breakage accidents, and automatic power cut-off for the heating part.
5. Large pipe diameter and large processing capacity: greatly improving processing efficiency, processing more materials at once, suitable for powder and granular materials.
6. Able to pass through the atmosphere and evacuate: equipped with a vacuum pump, can be equipped with gas cylinders, and can adapt to more processes that require processing in gas or vacuum state.

Model		KJ-TX1100-S166LK6
Standard Parts heating
Heating Furnace	Furnace Feature	Furnace shell: High intensity carbon steel with electrostatic spraying. Process using grinding mouth cavity seal sealing interface is stable and reliable Temperature of furnace shell below 60℃
	Display	LED Display with independent control
	Furnace door design	Split type, electric opening mode
	Max Temperature	≤1200℃
	Continuous Working Temp.	≤1100℃
	Cooling system	Air-cooling system
	Tube Material	Quartz Tube
	Tube size	166mm(Can be customized according to customer needs)
	Tube length	2000mm (Can be customized according to customer needs)
	Tube Baffle Design	There would be some tube paddle setting inside the tube for better mix the material, paddle amount base on final design..
	Hot zone amount	6 zones(Can be customized according to customer needs)
	Hot zone length	250×250×250×250×250×250mm(Can be customized according to customer needs)
	Heating element	SIC Rod (For easy maintenance)
	Chamber Material	Alumina Fiber
	Heating  Rate	0-10℃/min
	Thermocouple	N type
	Mobile box	The furnace is designed with removable type
	Temperature Control	● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
	Safety Element	Over-temperature alarm Over-current protection Thermocouple broken indication
	Tilting Angle	0-5℃(An extra protractor will be made on the furnace, that would be easy for setting the tilting angle you need)
	Tube rotating Speed	1-3rpm
	Material Feeding Design	Feeding by Manually
	Material Discharge Design	Tilting for remove the material
	Flange Design	Hinged vacuum flange design(One side for material feeding) Common vacuum flange design(the other side) 1/4” NPS gas inlet and out
Warranty		One year limited warranty&lifetime technical support (Consumable parts such as heating elements are not covered by the warranty)

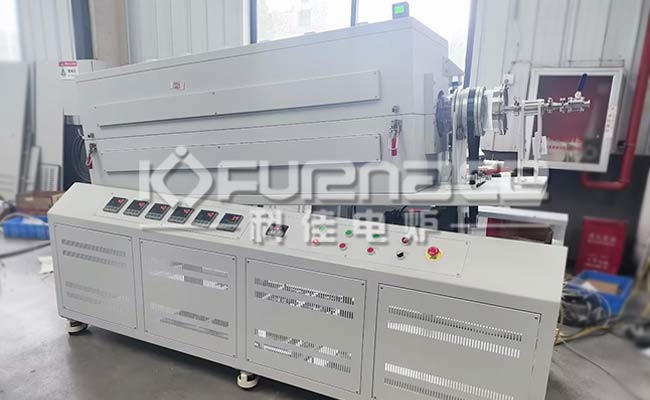

Actual photo of a large diameter 6-zone rotating inclined tube furnace

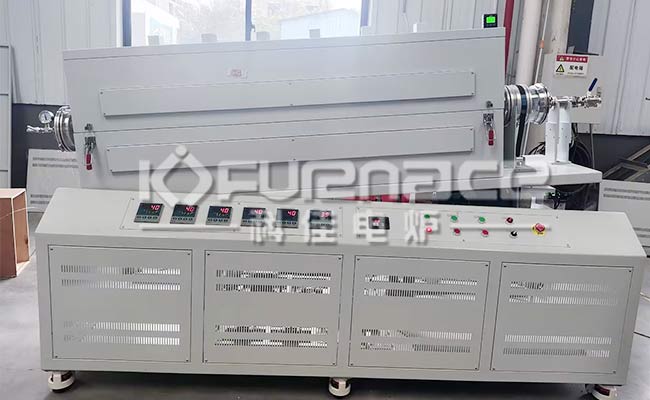

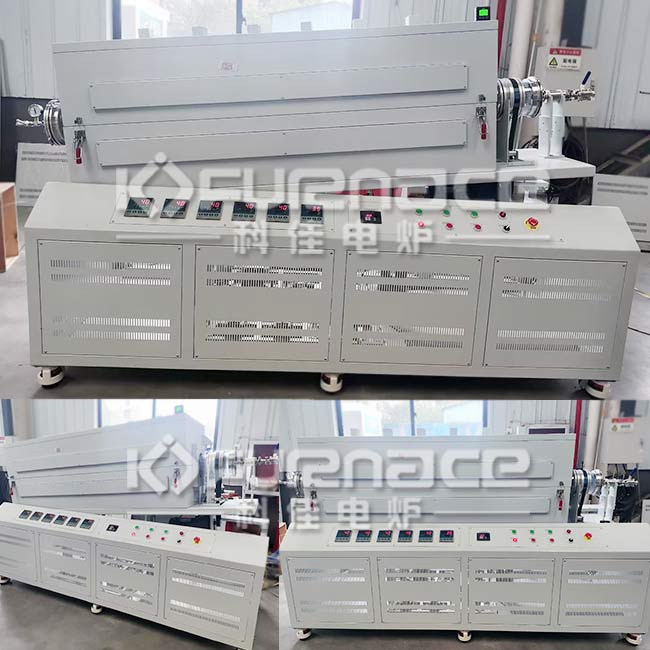

Actual photo of a large diameter 6-zone rotating inclined tube furnace
