Product Description:

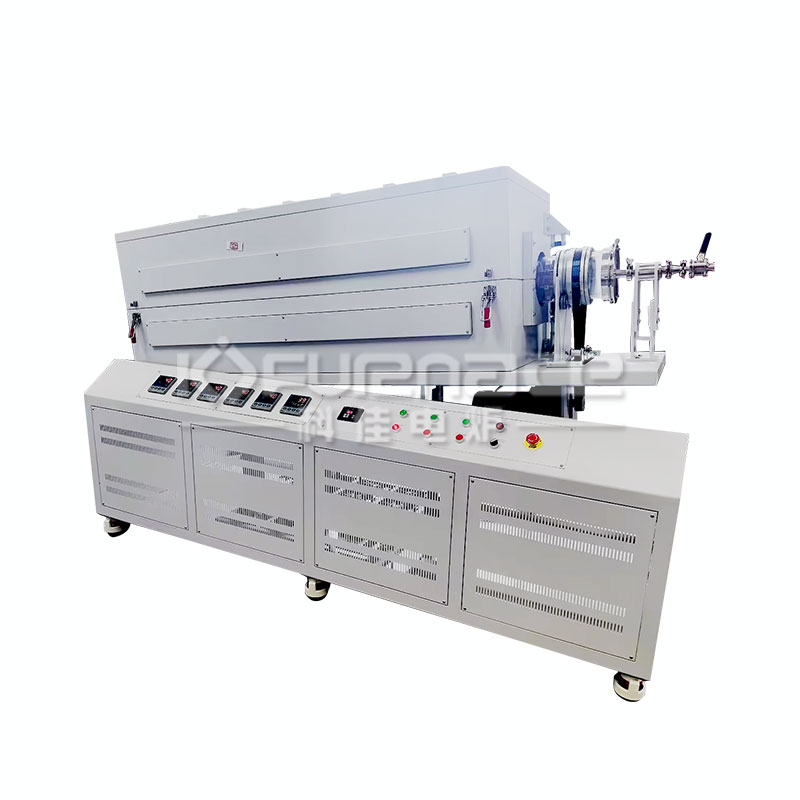

The Large diameter double temperature zone rotating tube furnace with double heating zones can compound and surface the powder. This device can be used to explore a new generation of core shell materials or CNT composite materials.
Brief Introduction：
The rotary furnace uses silicon carbide rods as the heating element, which can be heated up to 1000 degrees. The furnace can be opened for easy cleaning and replacement of the tube. The furnace adopts 310S metal tube with a diameter of 200mm to meet the needs of small batch production. Dual temperature zone temperature control can achieve a certain temperature gradient. During the heating process, the furnace tube can be rotated 360 degrees to make the material heated more evenly.
Technical Parameter:
The Large diameter double temperature zone rotating tube furnace with double heating zones can compound and surface the powder. This device can be used to explore a new generation of core shell materials or CNT composite materials.
Brief Introduction：
The rotary furnace uses silicon carbide rods as the heating element, which can be heated up to 1000 degrees. The furnace can be opened for easy cleaning and replacement of the tube. The furnace adopts 310S metal tube with a diameter of 200mm to meet the needs of small batch production. Dual temperature zone temperature control can achieve a certain temperature gradient. During the heating process, the furnace tube can be rotated 360 degrees to make the material heated more evenly.
Technical Parameter:
| Model Name | large-diameter rotary furnace |
| Furnace Structure | Double shell with air cooling system |
| Chamber Material | Alumina Fiber |
| Tube material | 310s（or base on custoemr request） |
| Tube Size | 200mm or base on custoemr request） |
| Heating Zone | 300*300mm |
| Working Temperature | 1000℃ |
| Temperature Control | Two zones independently control temperature, each zone has intelligent 30-segment PID programmable control, with over-temperature and thermo broken protection functions |
| Flange | Two sets of CF flanges are welding on two ends of the tube,One pressure gauge is installed on the end of gas inlet. |
| Sealing | The tube and flange adopt O-ring extrusion seal, which is convenient for disassembly and assembly, repeatable disassembly and assembly, and wihth great air tightness. Vacuum and atmosphere can be drawn during the rotation. |
| Heating Rate | 0-10℃/min adjustable |
| Heating element | SIC Rod |
| Voltage | AC 220/380V 50/60Hz |
| Thermocouple | K type thermocouple |
| Vacuum Level | -0.1MPa(Relative Pressure) |
| Warranty | One year warranty&lifetime technical support（not including the wear parts） |
