1000 ℃ Vacuum Powder Treatment Rotary Tube Furnace

The daily working temperature of the KJ-TX1000-H150LK1 1000 ℃ vacuum powder treatment rotary tube furnace is 1000 degrees. The furnace is lined with alumina fiber, with intelligent temperature control, simple operation, and high intelligence. Mainly used in fields such as crystal annealing, electronic lighting, two-dimensional material sintering, atmosphere protected sintering, vacuum coating, CVD experiments, and material composition determination. It belongs to a type of tube furnace.

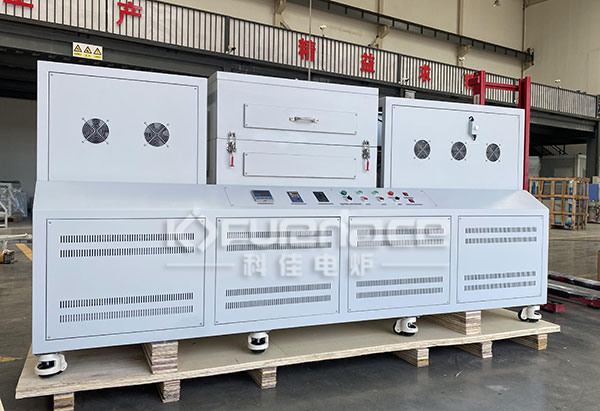

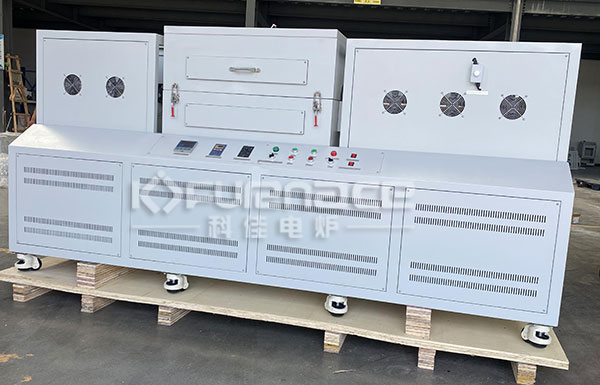

Actual photo of 1000 ℃ vacuum powder treatment rotary tube furnace

Model	KJ-TX1000-H150LK1
Structure	Carbon steel outside shell Alumina fiber lining Double-layer structure with cooling fan Split type (Mechanical lifting upper cover.)
Tube	Stainless steel tube OD150* L1600mm Rate-adjustable rotation function 0-20r/m Clockwise and anticlockwise
Sealing	Air-tight From funnel to collection tank. Analog pressure gauge with measurement range from -0.1Mpa to 0.15Mpa KF40 Gas-in port and gas-out port.
Funnel	5L volume
Pusher	Mechanical type   Adjustable pushing rate
Collection tank 5L
Heating zone length	600mm
Working Temperature	1000℃
Temperature detector	K-type thermocouple
Temperature Control	PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant
Heating Rate	Suggestion: ≤10℃/min
Temperature Accuracy	+/-1℃
Heating Element	SiC
Tilting angle	0-15
Working Voltage	220V, 60Hz
Max. Power	15 KW(Estimated)
Production Period	25 working days
Warranty Period	1 year (Lifetime support)

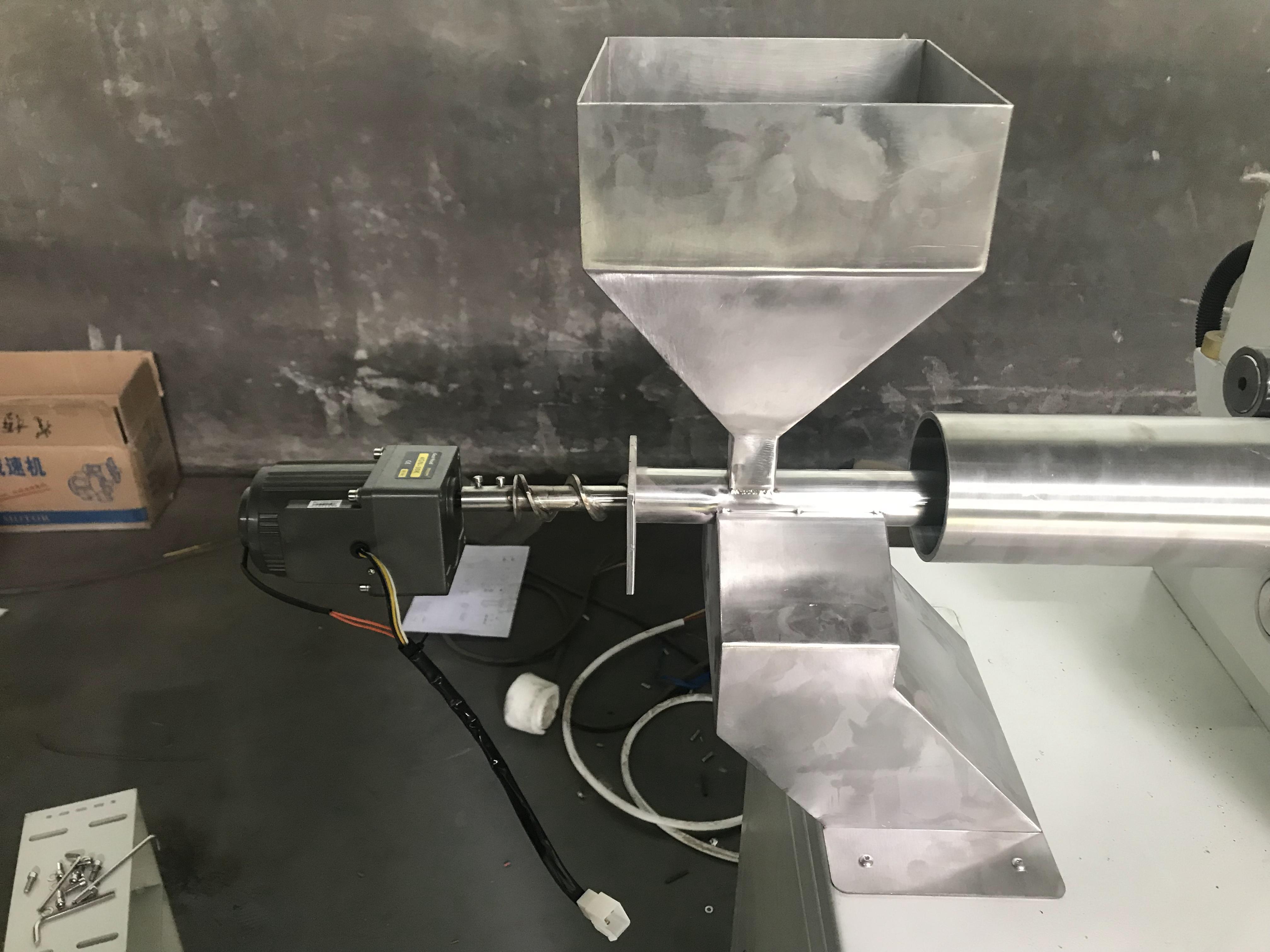

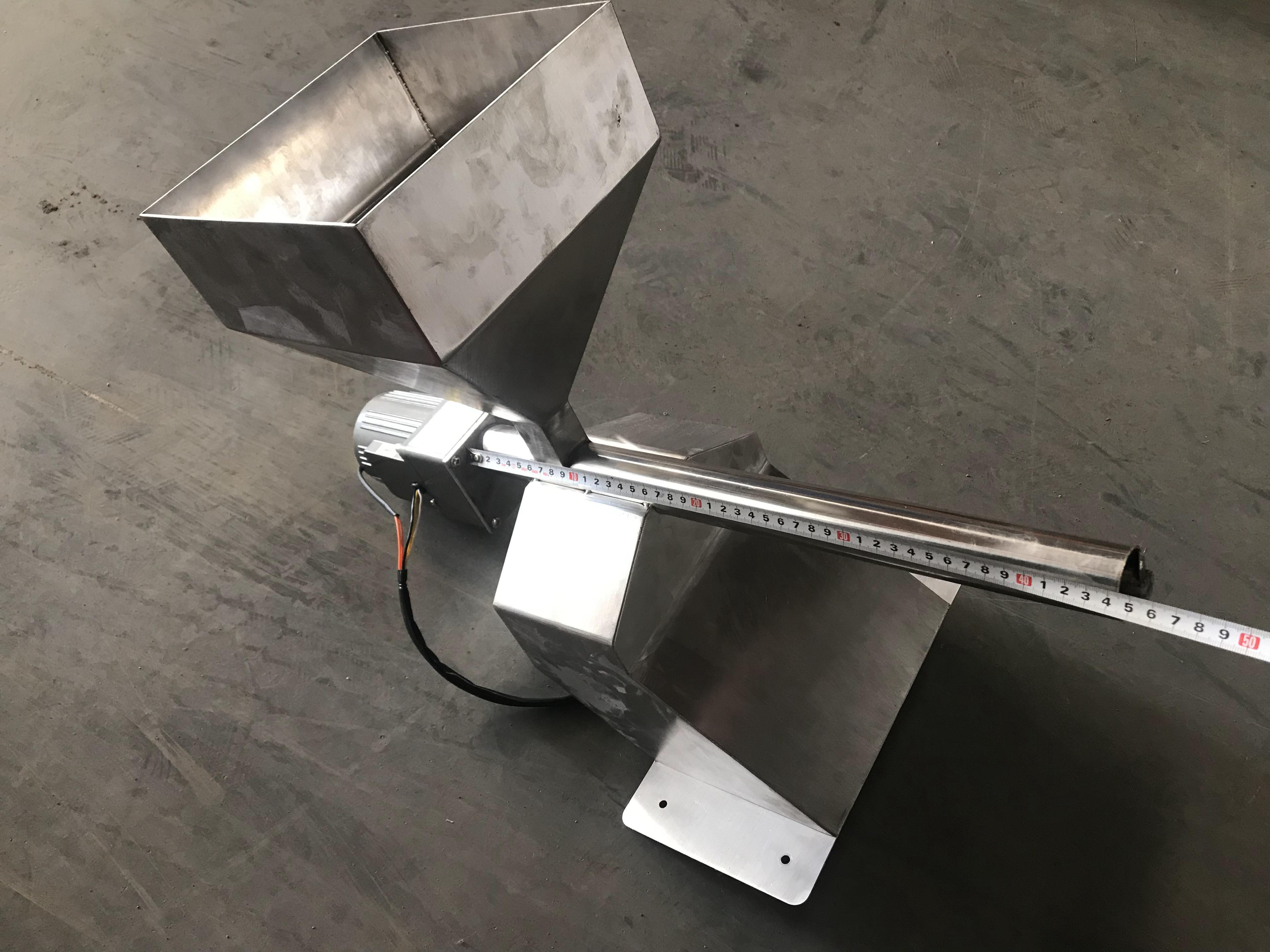

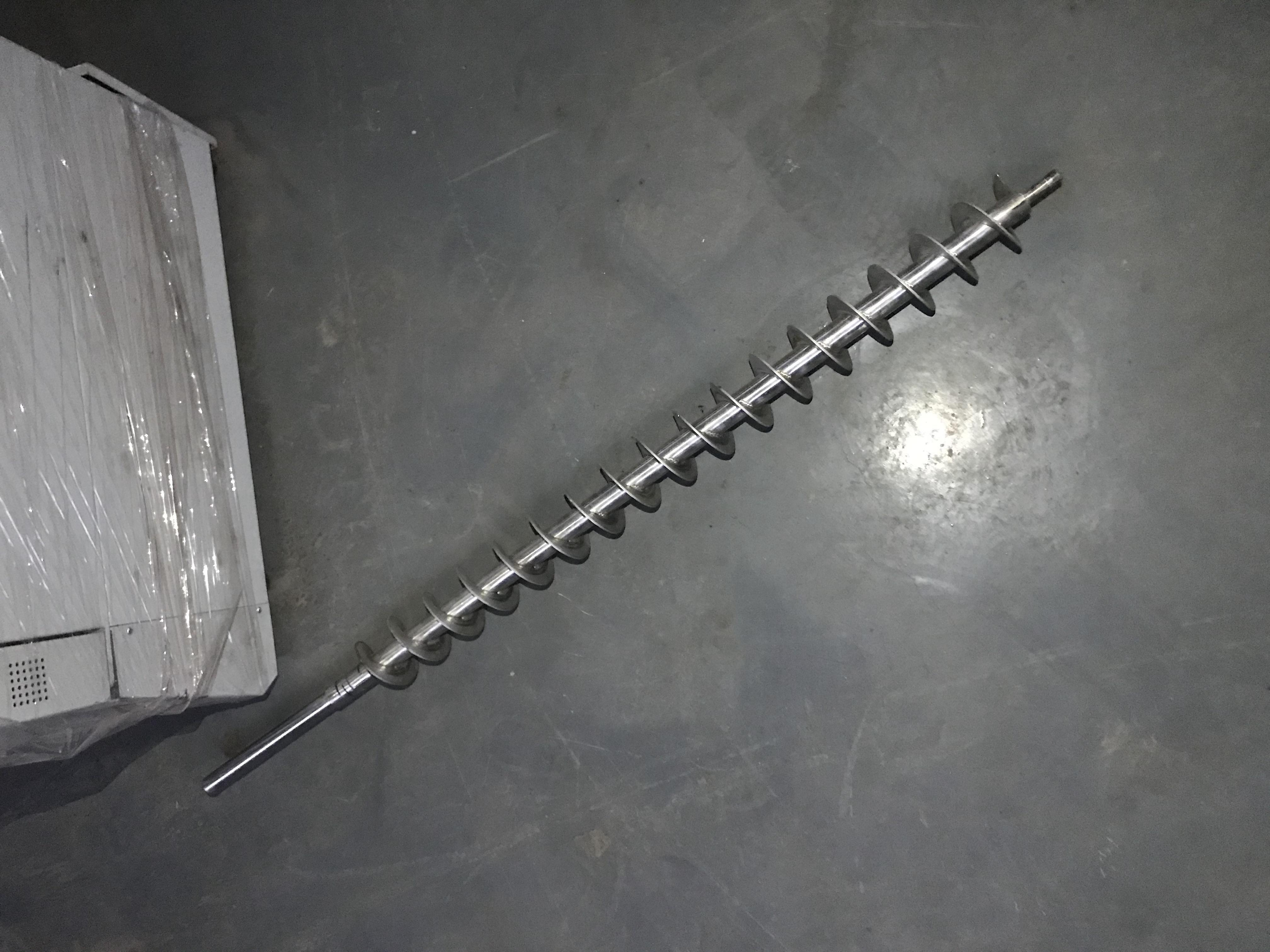

Actual photo of 1000 ℃ vacuum powder treatment rotary tube furnace
