1200 ℃ multi station tube furnace

Model：KJ-TD1200-S80LK1W

Description：

The Protech KJ-TD1200-S80LK1W multi-station vacuum tube furnace can be adjusted horizontally or vertically during use, and can rotate 360 degrees according to requirements, greatly improving its performance. Can vacuum through the atmosphere to meet d

Product Introduction:

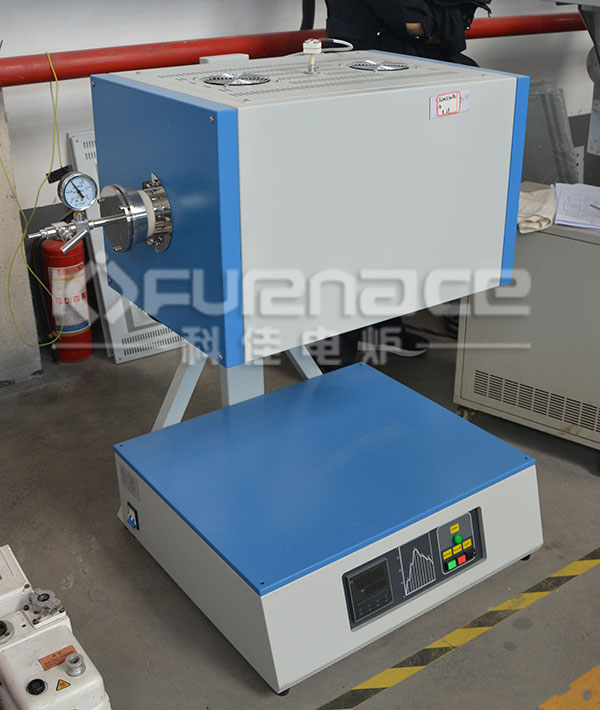

Real shot of 1200 ℃ multi station tube furnace

Main product advantages:

1. Operation Temperature: 1200℃ (Max. temp. 1300℃ )
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.
6. Can be rotated in 360° according to your requirement.

The main technical parameters:

Model	KJ-TD1200-S80LK1W
Display screen	LED
Furnace material	high-quality and high-purity alumina polycrystalline fiber
Maximum temperature	1300 ℃ (lasting for 5 minutes)
Working temperature	1200℃
Heating rate	recommended 5-7 ° C/min
Furnace tube material	aluminum oxide tube
Hot zone length	OD80*300mm
Rotating structure	360 degree multi angle rotation
Temperature control system	1. PID method is used to adjust the temperature control, and 30 stages of heating and cooling programs can be set 2. Temperature control accuracy ± 1 ℃ 3. Equipped with overtemperature protection and couple breaking protection functions, when the temperature is too high or the couple is broken, the heating circuit of the electric furnace will automatically cut off, achieving unmanned operation
Heating element	silicon carbide heating element
Temperature measuring element	S-type thermocouple
Power supply	AC220V，50/Hz
Maximum power	4KW
Random accessories	1 set of air supply, 1 crucible clamp, 1 glove, instruction manual, warranty card
After sales service	one year warranty (excluding vulnerable parts)
	Customizable

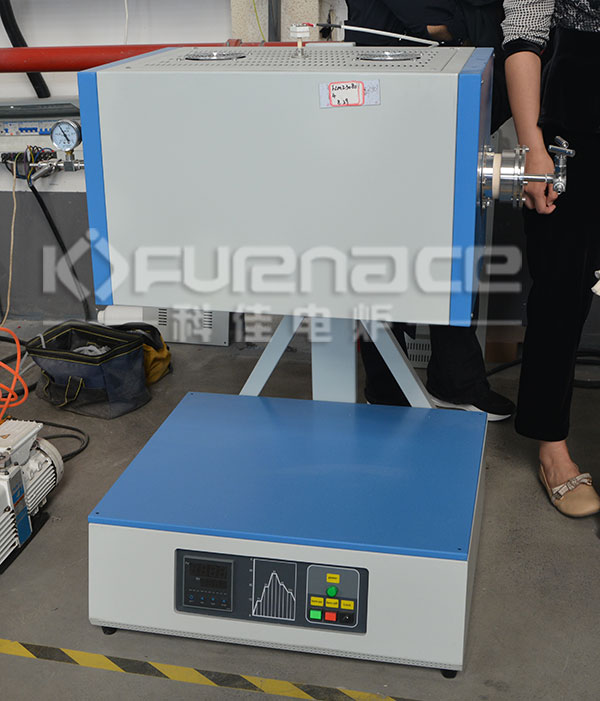

Real shot of 1200 ℃ multi station tube furnace
