High Temperature Graphite Vacuum Hot Pressing Furnace

Model：KJ-GV2200

Description：

Basic description ： The electric furnace has graphite heating, periodic working, vertical installation, and is suitable for sintering under metal vacuum, inorganic non-metal materials, sub-vacuum, high temperature and hot pressing, and of

technical parameters of High Temperature Graphite Vacuum Hot Pressing Furnace：

Heating mode: graphite carbon tube	high purity graphite
the highest temperature	2100 ℃
work temperature	2000 ℃
the workspace size	160 x 160 mm Ф (D * H)(Can be customized according to customer needs)
the pressure head diameter	85 mm Ф(Can be customized according to customer needs)
Maximum pressure	20t (digital display, automatic voltage regulation, automatic pressure maintaining)
Pressure fluctuation	0.1mpa, displacement accuracy: 0.02mm(Can be customized according to customer needs)
Pressure stroke	0 ~ 100mm (digital display)(Can be customized according to customer needs)
Hydraulic control	the hydraulic station is equipped with imported proportional valve pressure regulator, pressure sensor, hydraulic cylinder and other related hydraulic devices. The pressure can be automatically adjusted through PLC editing program section setting, and the pressure can be stabilized and maintained
Cold limit vacuum degree of empty furnace	6.67 * 10-3 Pa

High Temperature Graphite Vacuum Hot Pressing Furnace can be customized according to customers’requirements.

Product Display

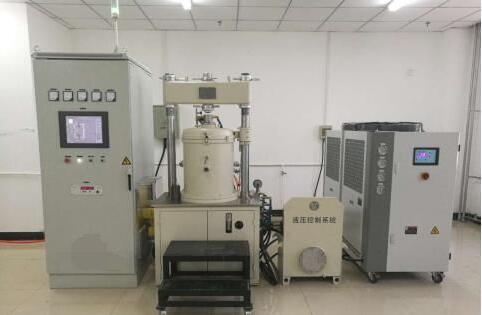

High Temperature Graphite Vacuum Hot Pressing Furnace
