MoSi2 heating elements

Model:

Description:Kejia MoSi2 heating element can reach 1800 C, its applicable temperature is 500~1700C, it can be widely used in such applications as sintering and heat treatment of ceramics, magnet, glass, metallurgy, refractory etc.

Introduction:

Features of MoSi2 heating element:

1. MoSi2 heating element used in the high temperature under oxidizing atmosphere.

2. It will form the SiO2 film which can keep the element from being melted.

3. It has unique effect for resisting oxidization in the high temperature.

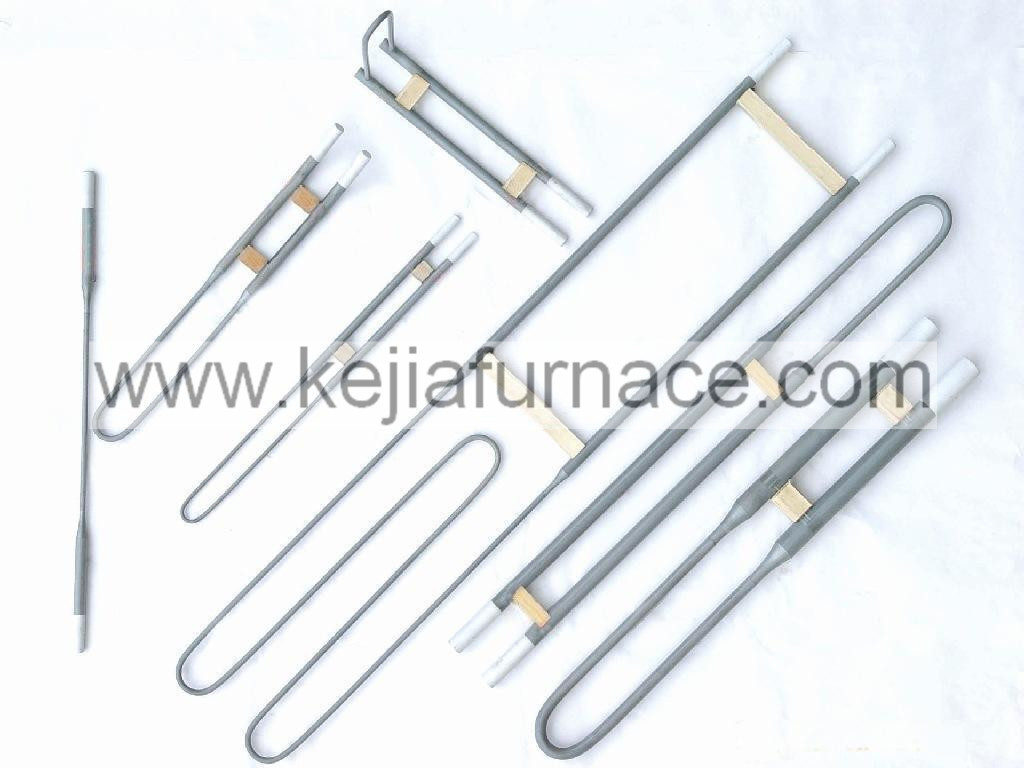

4. "U", "W" and "U-right angle” shapes heating elements are available.

Descriptions

	1700°C Grade					1800°C Grade
d/c (mm)	3/6	4/9	6/12	9/18	12/24	3/6	4/9	6/12	9/18	12/24
Le Max,mm	350	450	1400	1400	1700	350	450	1400	1400	1700
Lu Max,mm	300	450	1000	1000	1000	300	450	1000	1000	1000
a (mm)	25	25	40/50	60	80	25	25	40/50	60	80
Nonstandard shape & size could be made according to your requirement.
