Introduction

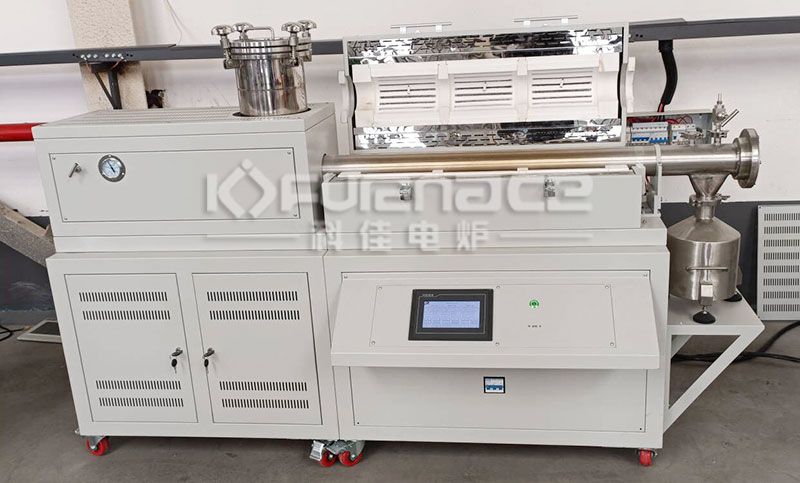

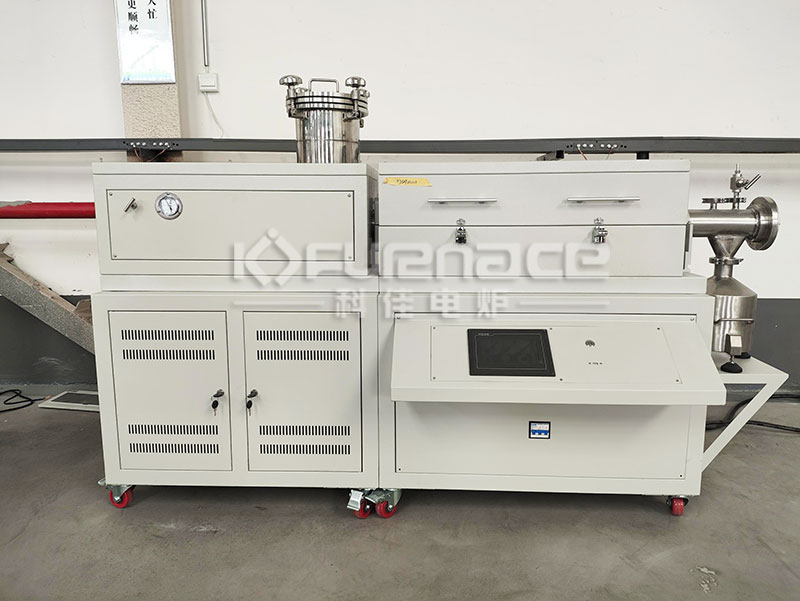

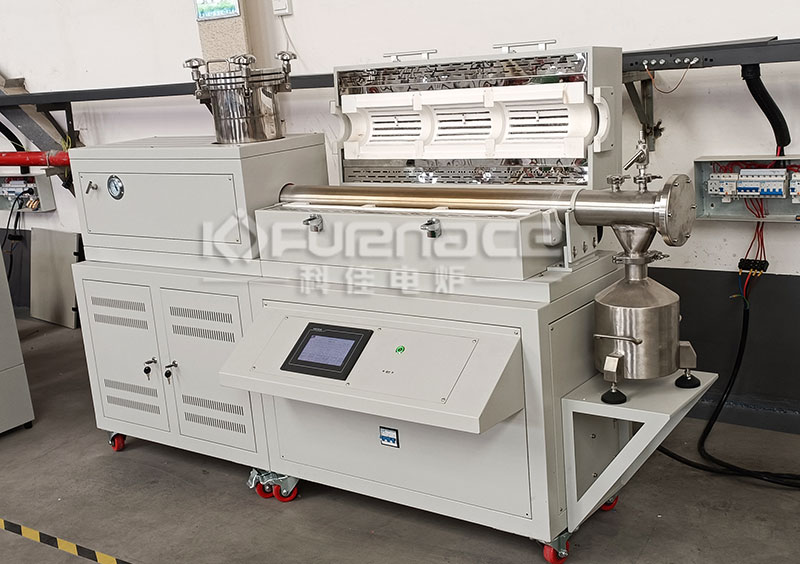

KJ-T89*220*3 Three-zone spiral feeding tube furnace uses resistance wire with Mo as heating element. Max. temperature inside furnace can be reached at 900℃. The furnace temperature profile can be set up to 16 curves by 30 segments and run automatically by the advanced temperature controller. It is multiple heating zone design for sample uniform heating, user can also set temperature gradient. Screw feeder inside the stainless tube and connect to motor shaft, good magnetic fluid seal for motor, screw feeder rotates along with motor working, samples get forward, so it can handle the samples continuously, meantime rotation speed is adjustable, from 0.05~2RPM, user can adjust sample dwell time in the hot zones. It is excellent for material research, ceramic research labs to develop various new materials.Belongs to a type of tube furnace.
Technical Specifications
KJ-T89*220*3 Three-zone spiral feeding tube furnace uses resistance wire with Mo as heating element. Max. temperature inside furnace can be reached at 900℃. The furnace temperature profile can be set up to 16 curves by 30 segments and run automatically by the advanced temperature controller. It is multiple heating zone design for sample uniform heating, user can also set temperature gradient. Screw feeder inside the stainless tube and connect to motor shaft, good magnetic fluid seal for motor, screw feeder rotates along with motor working, samples get forward, so it can handle the samples continuously, meantime rotation speed is adjustable, from 0.05~2RPM, user can adjust sample dwell time in the hot zones. It is excellent for material research, ceramic research labs to develop various new materials.Belongs to a type of tube furnace.
Technical Specifications
| Chamber Structure | Split design |
| Display | LCD touch screen |
| Max. Working Temperature | 900℃ |
| Heating Rate | 0~20C/min (suggest 0~15℃/min ) |
| Tube material | 310S |
| Tube with screw feeder |
Outer diameter: 89mmm inner diameter:77mm(Can be customized according to customer needs) |
| Heating zone num | 3(Can be customized according to customer needs) |
| Unit heating zone length | 220mm(Can be customized according to customer needs) |
| Heating Element | Resistance wire with Mo |
| Thermocouple | N Type |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 16 curves, 30 steps programmable |
| Hopper volume | 5L(Can be customized according to customer needs) |
| Chamber material | Alumina Fiber |
| Gas inlet and outlet | Stainless steel gas inlet&outlet with needle valve |
| Limit working pressure | 0.02MPa |
| Pressure Gauge | Mechanical pressure gauge |
| Warranty | One year warranty (Consumable parts such as heating elements and insulation material are not covered by the warranty) |
