Product Introduction:

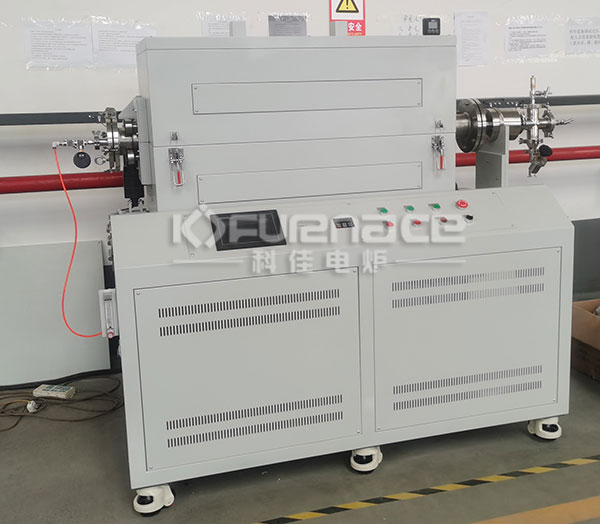

The KJ-TX1000-H200LK3 atmosphere inclined rotary tube furnace consists of a heating system, vacuum system, control system, and gas supply system. It adopts dual temperature zones for independent control heating, with multiple temperature control systems for each zone, phase shift triggering, and thyristor control. The furnace body is a double shell air-cooled structure, with an upper opening type for convenient cooling and heat dissipation, as well as the replacement of furnace tubes, and has a tilting function. The furnace tube is made of 310S metal tube, with good sealing and corrosion resistance. Air inlet and outlet ports are reserved at specific locations, and a mechanical pressure gauge is equipped. It has forward and reverse rotation functions and adjustable speed. Install lifting plates internally to evenly heat the material. The furnace is made of alumina polycrystalline fiber material, heated by high-quality silicon carbon rods, arranged in a circular shape with a balanced temperature field, and equipped with an air cooling system between the double layer furnace shells. It belongs to a type of 1200℃tube furnace.
Product advantages:
1. Double layer shell, equipped with air cooling system, effectively preventing rust through electrostatic spraying
2. Customized sealing flanges can achieve metal pipe sealing. Valves and mechanical pressure gauges are installed on the flanges, and the pressure inside the pipes can be observed in real-time through the mechanical pressure gauge
3. Adopting PID controller, intelligent 30 segment programmable control, equipped with touch screen, sintering data can be recorded according to the set interval time and exported in Excel format
4. Adding a stirring bar on the inner wall of the thick tube allows for even flipping of physical materials
The main technical parameters:
The KJ-TX1000-H200LK3 atmosphere inclined rotary tube furnace consists of a heating system, vacuum system, control system, and gas supply system. It adopts dual temperature zones for independent control heating, with multiple temperature control systems for each zone, phase shift triggering, and thyristor control. The furnace body is a double shell air-cooled structure, with an upper opening type for convenient cooling and heat dissipation, as well as the replacement of furnace tubes, and has a tilting function. The furnace tube is made of 310S metal tube, with good sealing and corrosion resistance. Air inlet and outlet ports are reserved at specific locations, and a mechanical pressure gauge is equipped. It has forward and reverse rotation functions and adjustable speed. Install lifting plates internally to evenly heat the material. The furnace is made of alumina polycrystalline fiber material, heated by high-quality silicon carbon rods, arranged in a circular shape with a balanced temperature field, and equipped with an air cooling system between the double layer furnace shells. It belongs to a type of 1200℃tube furnace.
1. Double layer shell, equipped with air cooling system, effectively preventing rust through electrostatic spraying
2. Customized sealing flanges can achieve metal pipe sealing. Valves and mechanical pressure gauges are installed on the flanges, and the pressure inside the pipes can be observed in real-time through the mechanical pressure gauge
3. Adopting PID controller, intelligent 30 segment programmable control, equipped with touch screen, sintering data can be recorded according to the set interval time and exported in Excel format
4. Adding a stirring bar on the inner wall of the thick tube allows for even flipping of physical materials
The main technical parameters:
| Name | Atmosphere inclined rotary tube furnace |
| Model | KJ-TX1000-H200LK3 |
| Double layered | shell structure, equipped with an air cooling system, effectively preventing rust through electrostatic spraying |
| Furnace tube material | 310S stainless steel material |
| Furnace tube size | outer diameter 80-200- outer diameter 80mm, total length of tube approximately 1400mm |
| Continuous working temperature | ≤ 900 ℃ |
| Maximum working temperature | 1000 ℃ |
| Air inlet and outlet | There is one air inlet on the sealing flange/one exhaust port on the sealing flange |
| Number of temperature zones | Dual temperature zones, each temperature zone is independently controlled, and there is no partition between temperature zones |
| Temperature zone length | Total length 800mm (400+400)(Can be customized according to customer needs) |
| Ultra high temperature alarm | There is an ultra-high temperature alarm |
| Broken Couple Reminder | There is a disconnection prompt |
| Furnace material | High purity alumina refractory fiber |
| Heating rate | 0-10 ℃/min |
| Furnace door structure | Electric upward opening |
| heating element | High quality silicon carbon rod |

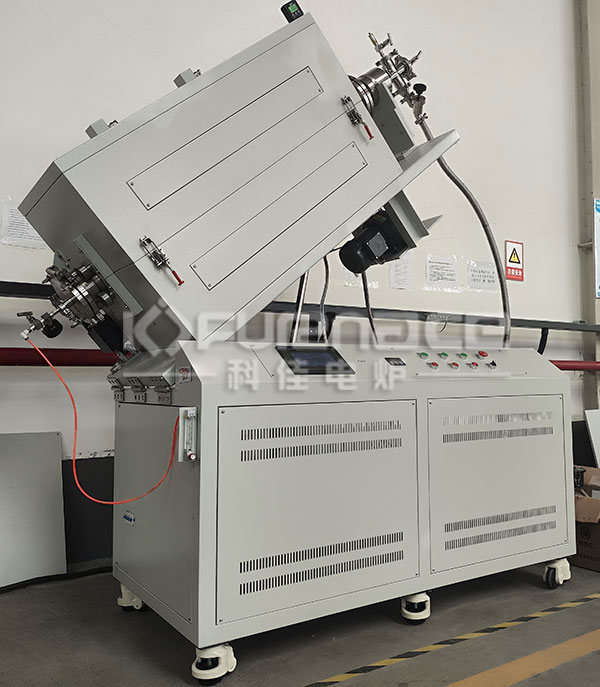

| Tiltable angle | 0-40 degrees (adjustable) |
| Furnace tube speed | 0-5 rpm (adjustable) |
| maintenance | One year limited warranty (consumables such as heating elements are not covered by the warranty) |
