KJ-TX1300-L100LK1 Rotary tube furnace

Model：KJ-TX1300-L100LK1

Description：

Product Introduction:

This rotary tube furnace adopts ≦1300℃ (Alumina ceramic tube), ≦1300℃ (Silicon Carbide Tube) and ≦1100℃ (Quartz tube) heating. The furnace tube is replaceable. The furnace body is made of alumina polycrystalline fiber material, with balanced temperature field and double-layer furnace shell. The room is equipped with an air cooling system that can heat up quickly; the furnace body can be tilted 0-10° (Button control), and the furnace tube can rotate 360 degrees.Click to view more tube furnaces!

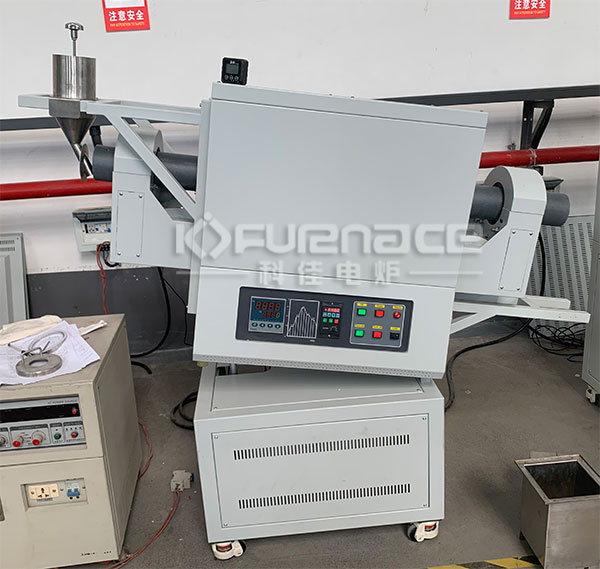

KJ-TX1300-L100LK1 Rotary tube furnace actual photo

The main technical parameters:

Structure	Carbon steel outside shell Two layers of Alumina fiber boards · 1400deg.C alumina fiber · 1600deg.C alumina fiber Cooling fans
Tube	Alumina ceramic tube OD.100mm,ID.92mm×Len.1260mm Quartz tube OD.100mm,ID.92mm×Len.1260mm Silicon carbide tube OD.100mm,ID.80mm×Len.1260mm
Sealing	SS 316 Flanges with rubber (With analog vacuum gauge)
Working Temperature	≦1300℃ ( Alumina ceramic tube) ≦1300℃ ( Silicon Carbide Tube) ≦1100℃ ( Quartz tube)
Temperature sensor	S-type Thermocouple
Temperature Control	PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant
Heating Rate	0~15℃/min (suggestion: ≤10℃/min)
Temperature control Accuracy	+/-1℃
Heating Element	SiC heating rods
Rotary Speed	0-30RPM variable (speed regulator)
Tilting Angle	0-10°variable (Button control)
Working Voltage	AC 220V, Single Phase, 50 Hz
Max. Power	5.0 kW
Warranty Period	1 year (Consumable parts such as tube,heating rods and thermocouple are not covered)

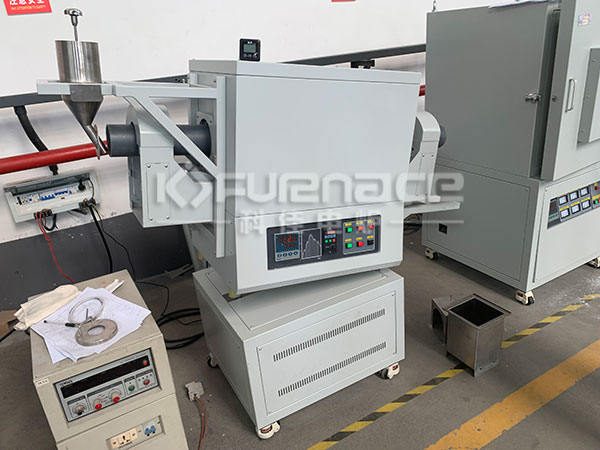

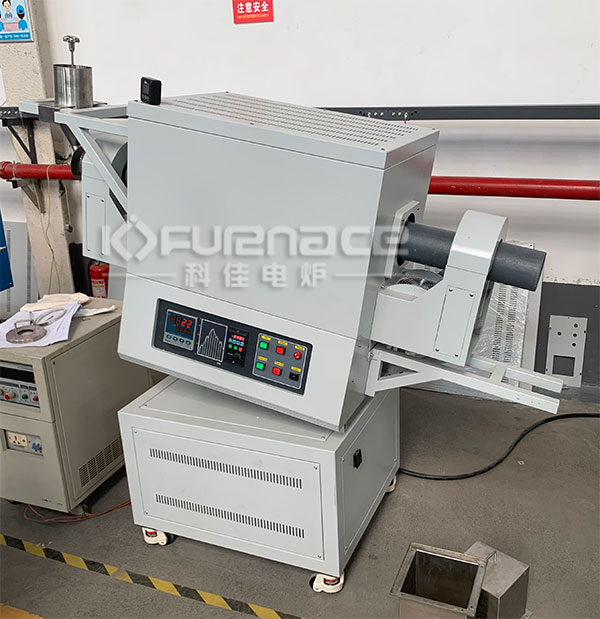

KJ-TX1300-L100LK1 Rotary tube furnace actual photo

Product Display

KJ-TX1300-L100LK1 Rotary tube furnace
