KJ-TX1000-L150CK3W inclined rotary tube furnace

Model：KJ-TX1000-L150CK3W

Description：

Product Introduction:

The KJ-TX1000-L150CK3W inclined rotary tube furnace is used for laboratory calcination and drying of positive electrode materials, non strong acid-base powder materials, and granular materials in batteries. Users can choose to calcine under vacuum or atmosphere protection according to the materials they want to calcine. Click to view more tube furnaces, or click to consult online customer service for more product related content!

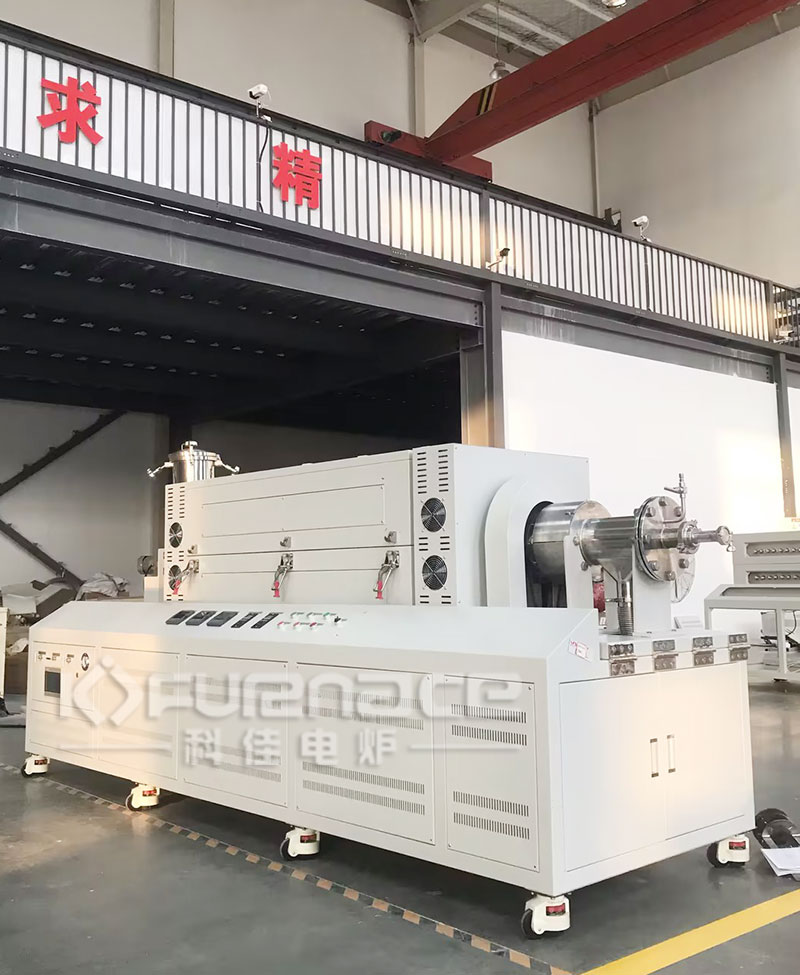

Actual photo of KJ-T1000-L150CK3W inclined rotary tube furnace

The main technical parameters:

Model	KJ-TX1000-L150CK3W
Furnace structure	Carbon steel outside shell Alumina fiber lining Double-layer structure with cooling fan Split type
Continuous working Temperature	≤1000℃
Heating Rate	0-20℃/min, Suggestion 0~10℃/min
Temperature Zone	Three heating zone
Heating zone length	400+400+400mm, total length 1200mm
Tube size	OD150mm x L2400mm
Heating Element	SiC rods
Temperature Control Accuracy	±1℃
Tube rotating Speed	0 - 5RPM variable
Furnace Tilt Angle	0~5°
Thermocouple	3 pieces of K type
Max.heating Power	26KW(Specific according to design)
Tube material	Inconel 601(with lifting blade inside)
Chamber material	Alumina Fiber
Left side	-8L of SS304 stainless steel of container; -Auger drive for material feeding (SS316 stainless steel); -N2 Gas inlet; -SS304 stainless steel cover for relative sealing.
Right side	-4L of SS304 stainless steel of container, both top and bottom with valves; -OD35xL600mm Inconel 60l tube on the right side for exhaust gas out(with diameter 50mm flange connection port). -SS304 stainless steel cover for relative sealing. -N2 Gas inlet;
Working Voltage	AC 480v, three-phase, 60 Hz
Temperature Controller	3 pieces of Eurotherm 3504 temperature Controllers
Mass flow meter	MFC 1: 0-2000sccm, N2 MFC 2: 0-20000sccm, N2 Installed with 2 stainless steel needle valves. Accuracy： ±1.5 % F.S Linear：±(0.5~1.5) % F.S Repeatability：±0.2 %F.S Response time ： Electrical Characteristics: 10 sec Gas Characteristics: (1 ~ 4) sec Working pressure range：(0.1 ~ 0.5) MPa Operating ambient temperature：5 ℃ ~ 45 ℃ Input and output signals：0 V ~ +5.00 V (Input impedance is > 100K, output current < 3mA)
Warranty	One year limited warranty

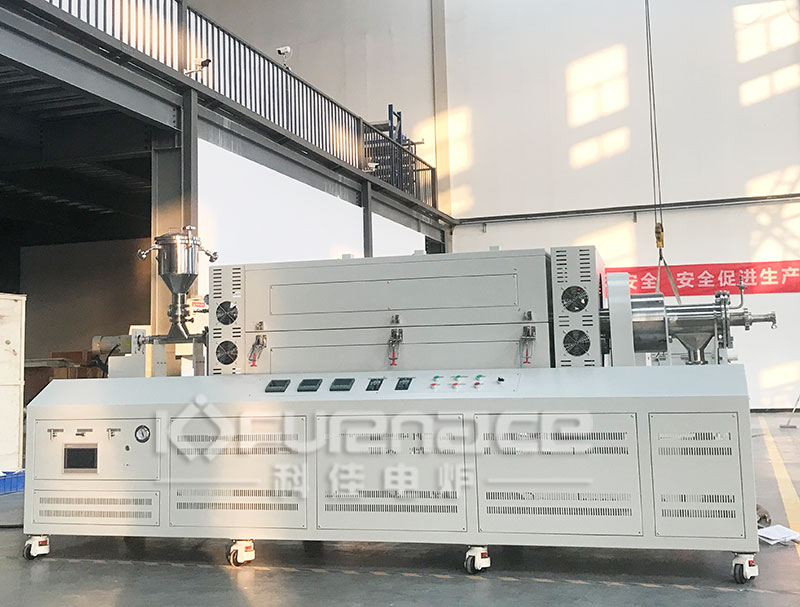

Actual photo of KJ-T1000-L150CK3W inclined rotary tube furnace

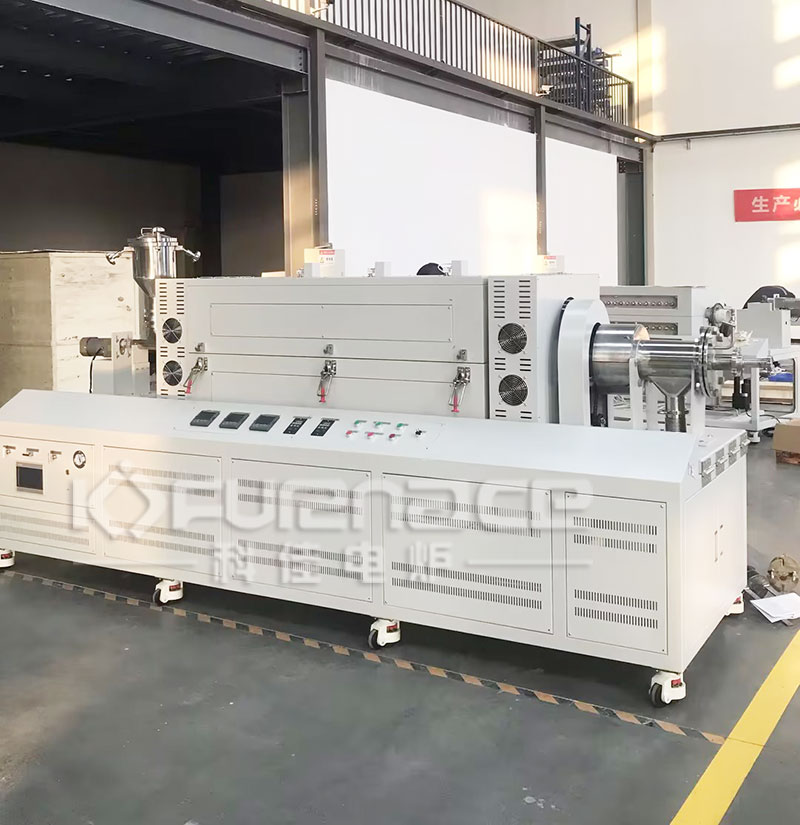

Product Display

KJ-TX1000-L150CK3W inclined rotary tube furnace
