1400℃ Vertical fluidized bed tube furnace

Introduction:

KJ-T1400-V60 sulfide bed vertical tube furnace, with high-purity quartz tubes. The furnace tube is equipped with a quartz boat embedded with a porous quartz plate, and the aperture of the quartz plate can be customized separately. The powder can be placed on a porous quartz plate, and gas can be introduced from the lower end of the furnace tube. The sample particles are suspended in the heating area through the porous quartz plate for deposition experiments. It belongs to a type of 1400℃tube furnace.

Application:

KJ-T1400-V60 vulcanization bed vertical tube furnace is suitable for CVD processes, such as silicon carbide coating, conductivity testing of ceramic substrates, two-dimensional material growth, controllable growth of ZnO nanostructures, and atmosphere sintering of ceramic capacitors (MLCC).

Advantage:

1. PID control method is used to adjust the temperature, and 30 temperature rise and fall programs can be set.
2. Temperature control accuracy ± 1 º C.
3. It has over temperature protection and couple breaking protection, and the instrument has the function of temperature self-tuning.
4. Touch screen control, data can be stored and copied.
5. Adopting polycrystalline fiber furnace material, the material has good insulation performance, high reflectivity, and a balanced temperature field.

Product parameters:

Vertical fluidized bed tube furnace
Model	KJ-T1400-V60
Heating zone length	400mm
Furnace tube size	diameter 60*1000mm
Furnace tube material	High purity quartz tube
Working temperature	≦1400℃
maximum temperature	1300℃
Temperature measuring element	S Type thermocouple temperature measurement
Heating rate	0-20ºC/min
Temperature Control System	The temperature control system adopts artificial intelligence adjustment technology, with PID adjustment and self-tuning functions 1. Adopt PID method to adjust temperature control, and can set 30 heating and cooling programs 2. Temperature control accuracy ±1ºC 3. With over-temperature protection and burnout protection 4. The instrument has the function of temperature self-tuning 5. Touch screen control, data can be stored and copied
Heating element	High temperature silicon carbide rod
Operating Voltage	AC 220V Simplex 50HZ
Maximum power	5KW（Subject to actual power）
Furnace material	Using polycrystalline fiber furnace material, the material has good thermal insulation performance, high reflectivity and balanced temperature field
flange	Stainless steel vacuum flange, easy to disassemble, the lower flange is a water-cooled flange
sieve	304 stainless steel screen, the hole is 0.2mm, the screen can be replaced
sealing system	The furnace tube and the flange are squeezed and sealed with O-rings, which are easy to disassemble, can be disassembled repeatedly, and have good air tightness.
flow meter	Two-way float flowmeter, controlled separately
fluidized area	1. The reaction gas passes through the reaction zone evenly 2. The solid particles are suspended in the heating zone by the gas fed in 3. The furnace body is designed to be open. When the experiment is over, the furnace body can be opened, the quartz tube can be taken out, and the reacted particles can be taken out. Note: When the gas is injected to suspend the sample particles, the particles may pass through the heating zone because the gas flow is too large, so the gas flow should be adjusted according to the size of the particles during the experiment
Temperature measurement system	A temperature measuring hole is reserved on the upper flange, and a K-type thermocouple goes deep into the tube to display the temperature in the tube in real time, and the position of the thermocouple can be moved
shell structure	Double shell structure, open type
Furnace structure	Vertical structure, with wheels on the bottom, easy to move
Standard accessories	1 pair of sealing flanges, 1 quartz tube, 4 sealing rings, 1 pair of high-temperature gloves, 1 crucible hook, 1 hex wrench for disassembling the flange, 1 warranty card manual

1400℃ Vertical fluidized bed tube furnace

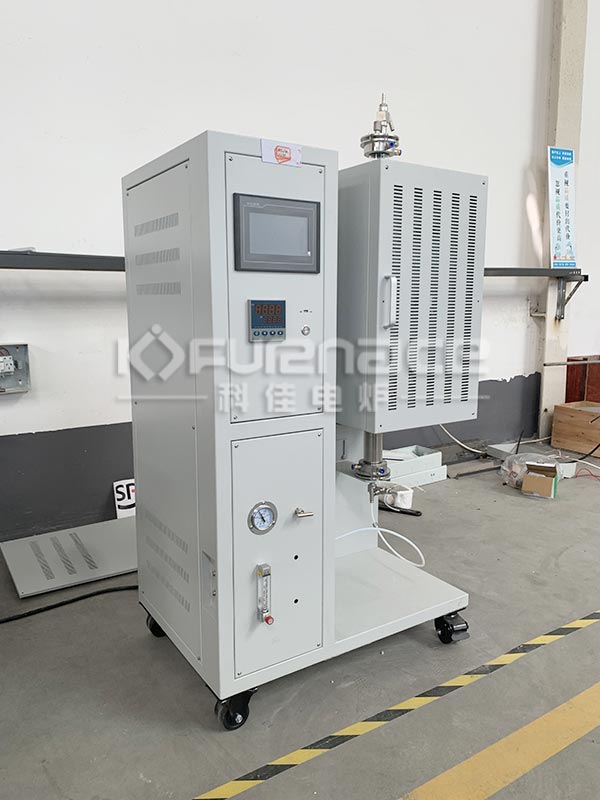

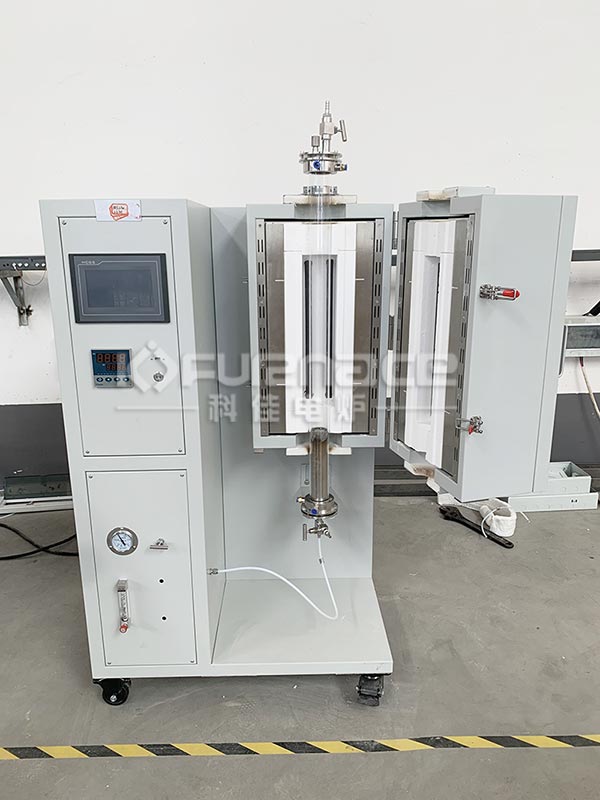

Product Display

1400℃ Vertical fluidized bed tube furnace
