Introduction
Technical Specifications

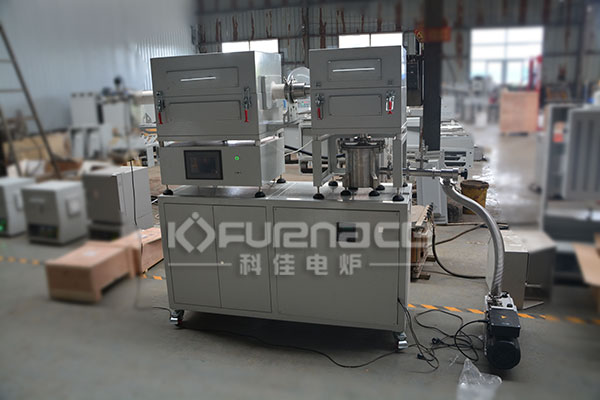

KJ-T1400-L80-SJ customized tube furnace adopts a box furnace structure for gas insulation, with resistance wire heating. The tube furnace above is heated by silicon carbon rods, specifically made for materials that require special heat treatment processes.It belongs to a type of 1400℃Tube Furnace.
| Chamber Structure | Split design |
| Display | LCD touch screen |
| Max. Working Temperature | 900℃ |
| Heating Rate | 0~20C/min (suggest 0~15℃/min ) |
| Tube material | 310S |
| Tube with screw feeder | Outer diameter: 89mmm inner diameter:77mm |
| Heating zone num | 3 |
| Unit heating zone length | 220mm |
| Heating Element | Resistance wire with Mo |
| Thermocouple | K Type |
| Max. Power | 7kW |
| Working Voltage | AC 380V 3P, 50 Hz |
| Temperature Control | PID automatic control via SCR power control |
| Heating curves | 16 curves, 30 steps programmable |
| Hopper volume | 5L |
| Chamber material | Alumina Fiber |
| Gas inlet and outlet | Stainless steel gas inlet&outlet with needle valve |
| Limit working pressure | 0.02MPa |
| Pressure Gauge | Mechanical pressure gauge |
| Warranty | One year warranty (Consumable parts such as heating elements and insulation material are not covered by the warranty) |
