Product description:

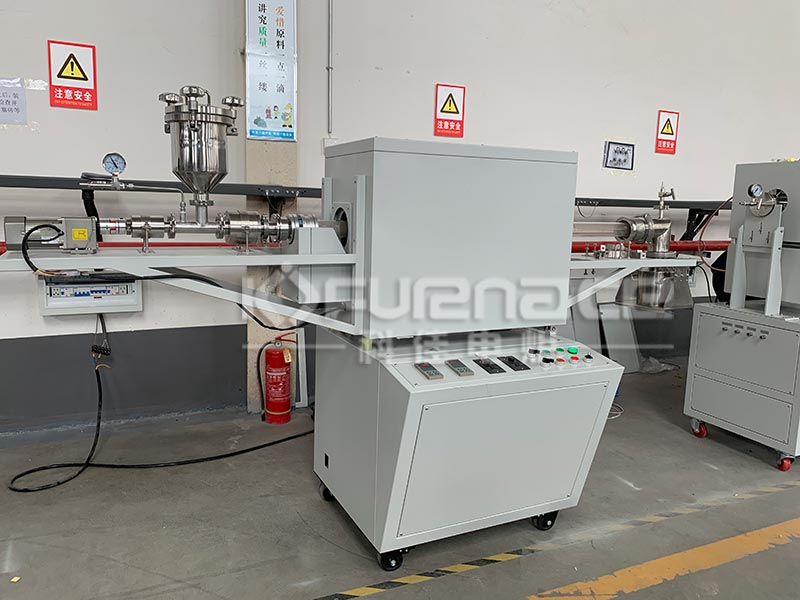

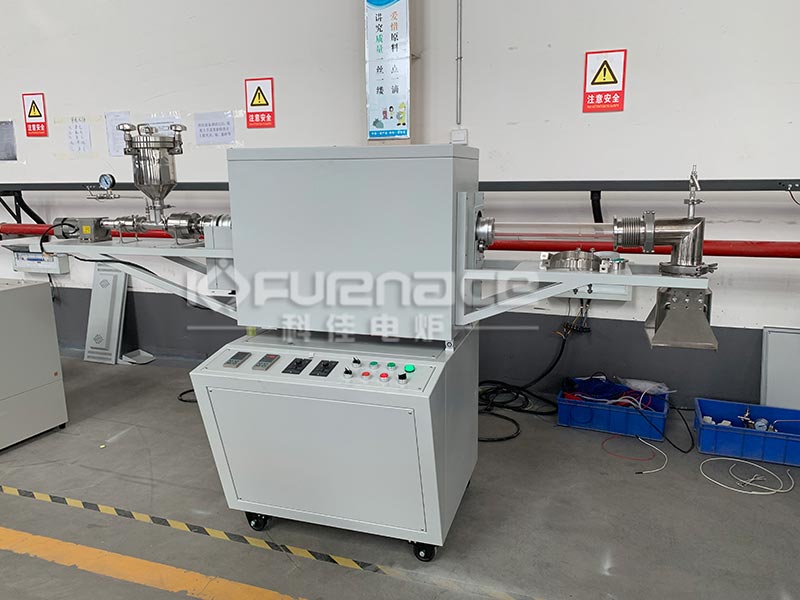

The high-temperature rotary furnace is heated by silicon-molybdenum rods with dual temperature zones. Each temperature zone can be controlled by a 30-segment program temperature control system, phase-shift trigger, silicon controlled rectifier control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and the double-layer furnace shell The room is equipped with an air-cooling system, which can quickly heat up; it is equipped with a sealed automatic feeder and a sealed receiving device. The furnace body can be tilted, and the furnace tube can be rotated 360 degrees.Belongs to a type of tube furnace.
Applications:
This equipment is specially used to coat the conductive layer on the cathode material of lithium-ion batteries, and can also prepare si/c anode materials by CVD.
It can realize the coating and modification of powder materials by continuous CVD method.
Features:
The furnace tube can be placed and the furnace body can be tilted.
It can automatically quantitatively load materials into the furnace tube under the atmosphere protection environment
It can collect materials by itself under the atmosphere protection environment
Accurate temperature control, fast heating speed and high work efficiency.
It can be vacuumed and shielded gas can also be passed.
It can be used as special equipment or general equipment.
Technical parameters:
The high-temperature rotary furnace is heated by silicon-molybdenum rods with dual temperature zones. Each temperature zone can be controlled by a 30-segment program temperature control system, phase-shift trigger, silicon controlled rectifier control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and the double-layer furnace shell The room is equipped with an air-cooling system, which can quickly heat up; it is equipped with a sealed automatic feeder and a sealed receiving device. The furnace body can be tilted, and the furnace tube can be rotated 360 degrees.Belongs to a type of tube furnace.
Applications:
This equipment is specially used to coat the conductive layer on the cathode material of lithium-ion batteries, and can also prepare si/c anode materials by CVD.
It can realize the coating and modification of powder materials by continuous CVD method.
Features:
The furnace tube can be placed and the furnace body can be tilted.
It can automatically quantitatively load materials into the furnace tube under the atmosphere protection environment
It can collect materials by itself under the atmosphere protection environment
Accurate temperature control, fast heating speed and high work efficiency.
It can be vacuumed and shielded gas can also be passed.
It can be used as special equipment or general equipment.
Technical parameters:
| Product name | high temperature rotary furnace | ||
| Model | KJ-TX1600-L60LB2 | ||
| shell structure | Double-layer shell. Equipped with air cooling system | ||
| Furnace tube material | Corundum tube (rounded at both ends) | ||
| Temperature zone length | Dual temperature zones, the total length of the temperature zone is 400mm(Can be customized according to customer needs) | ||
| Working temperature | The temperature is not higher than 1500°C under continuous operation; the maximum temperature: 1600°C | ||
| Temperature control method | Using PID controller, intelligent 30-segment programmable control | ||
| Super high temperature alarm | Super high temperature alarm | ||
| Marriage Reminder | There is a reminder | ||
| chamber material | High Purity Alumina Refractory Fiber | ||
| Heating rate | 0--10℃/min(1000°C or higher recommended ≤5°C/min) | ||
| Heating element | High quality silicon molybdenum rod | ||
| Temperature measuring element | B type thermocouple | ||
| tiltable angle | 0-10 degrees adjustable, the angle can be displayed through the digital display inclinometer | ||
| Furnace tube speed | Up to 10 revolutions per minute (adjustable speed and direction of rotation) | ||
| In and out | Sealed inlet and outlet, adjustable feeding speed | ||
| Mobile box | The lower box of the equipment is a movable box, which can also be used as a material rack, and the furnace is easy to move as a whole. | ||
| other sizes available | |||
| Heating zone size（mm） | Heating zone size（mm） | ||
| Φ50×300(Can be customized according to customer needs) | Φ50×400(Can be customized according to customer needs) | ||
| Φ60×300(Can be customized according to customer needs) | Φ60×400(Can be customized according to customer needs) | ||
| Φ80×300(Can be customized according to customer needs) | Φ80×400(Can be customized according to customer needs) | ||
