Activated carbon tube furnace

Model：KJ-T1600

Description：

The KJ-T1600 activated carbon tube furnace is mainly used for preparing activated carbon, using fruit shells and other materials to generate steam through a steam generator. The steam is then fed into the tube furnace where the material is placed for

Product Introduction:

The KJ-T1600 activated carbon tube furnace is mainly used for preparing activated carbon, using fruit shells and other materials to generate steam through a steam generator. The steam is then fed into the tube furnace where the material is placed for heating to generate activated carbon. Composed of a 1600 ° C high-temperature tube furnace and a steam generator. It belongs to a type of tube furnace.

Activated carbon tube furnace

Application:

Activated carbon tube furnaces are mainly used in laboratories and enterprises for material sample analysis or mass preparation of activated carbon. Equipment can be customized according to production capacity or production conditions.

Product advantages:

The KJ-T1600 activated carbon tube furnace is mainly suitable for dynamic sintering of powder and particles, making the material more evenly heated, shortening sintering time, reducing energy consumption, and improving quality.

The main technical parameters:

Model	KJ-T1600-C	KJ-T1600-D	KJ-T1600-E	KJ-T1600-F
Top Temperature	1600℃
Working Temperature	1500℃
Alumina Ceramic Tube Diameter	Φ60	Φ80	Φ100	Φ120
Heating zone length	300/440/500/600mm
Insulation layers	High-Purity Alumina Ceramic fiber
Power Supply	110/220V/380V, 50/60HZ.
Heating Rate	0-20℃/min
Control Accuracy	±1℃
Temperature Sensor	B-type Thermocouple
Heating Element	Molybdenum disilicide heating rods
Sealing	Flanges
Structure	Non-split
Accessories	Gloves, Crucibles, Tongs, Crucible hook.
Optional	Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters. Steam generator.
Customization is available.

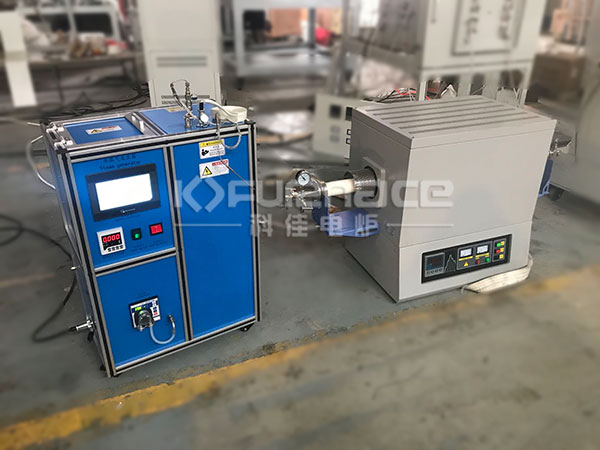

Activated carbon tube furnace

Product Display

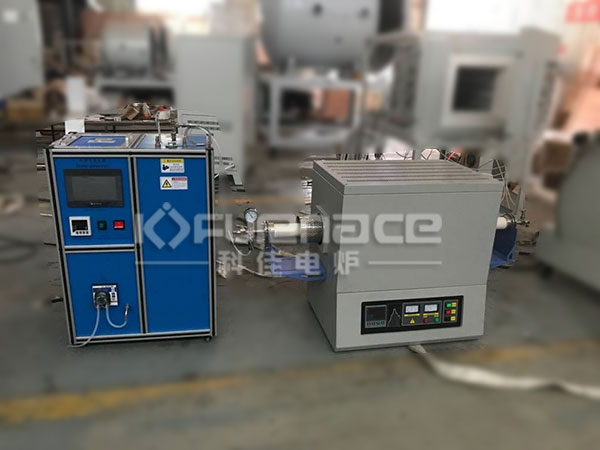

Activated carbon tube furnace
